Single Wide Scaffold is approximately 29 inches wide so it can roll through standard doorways. Perfect for work in congested or narrow areas. Available in 6, 8, or 10 ft lengths.

What is the minimum width of scaffolding?

The standards do specify a minimum platform width of not less than 20″ for two-point suspension scaffolds in Parts 1910.28(g) and 1926.451(i). It is recommended that we promulgate a new standard in Parts 1910.28(a) and 1926.451(a) which will establish a minimum width of 18″ for all scaffold platforms.

What is the maximum width of a two-point scaffold?

Platforms on two-point adjustable suspension scaffolds must be no more than 36 inches wide, unless a qualified person has designed them to prevent unstable conditions.

What is standard scaffolding?

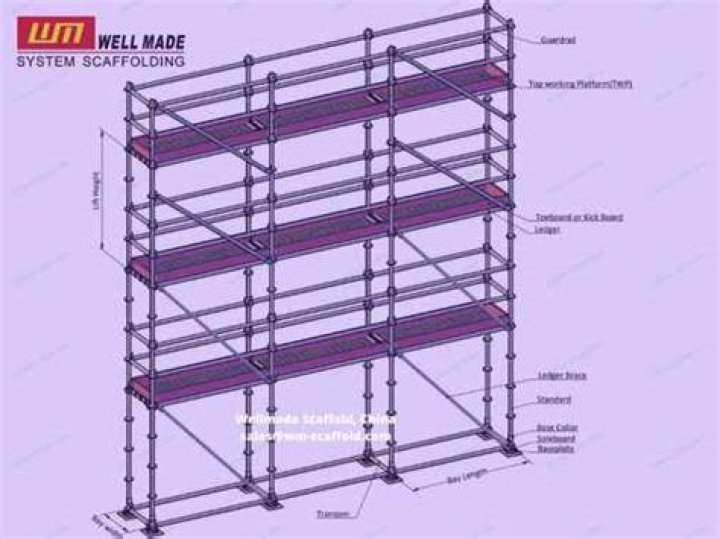

The key elements of the scaffolding are the standard, ledger and transoms. The standards, also called uprights, are the vertical tubes that transfer the entire weight of the structure to the ground where they rest on a square base plate to spread the load.

How is scaffolding measured?

How are scaffolding measured? Measure the total length of the area to be prepared. Divide the total length by the length of a single scaffold section. This determines the total number of scaffolding supports the project will require.

How far should a scaffold be from a building?

Ensure that the platform is 14 inches or less away from the wall or 18 inches or less away if plastering/stuccoing. Make sure there are guardrails, including mid rails and toe boards on platforms where work is being done.

What are the three types of scaffolds?

• Suspended Scaffolds.
• Supported Scaffolds.
• Aerial Lifts.

How tall is standard scaffolding?

Scaffold tower can be erected in all shapes and sizes. The standard dimensions are 5 foot and 7 foot long. Reaching 5 foot high all the way up to 30 feet tall.

What is the distance of scaffolding?

It is also known as bricklayer’s scaffolding and used in brickwork. Single scaffolding consists of only one row of standards spaced at a distance of about 1.2 m from the wall and in between them is about 2.0 – 2.4 m. The vertical spacing of ledgers is about 1.2 – 1.5 m and spacing of putlogs is 1.2 – 1.5 m.

How high can scaffolding go?

Construction scaffolding safety is paramount. OSHA further states that scaffolds more than 125 feet in height above the base must be designed by a professional registered engineer. These scaffold height restrictions reflect the hazards and structural stress when working at such heights.

Article first time published on

Do scaffold planks need to be secured?

It merely noted that, “all planks shall be secured from movement or overlapped in accordance with §1926.451(a)(12).” Like the current standard, the 1975 standard did not address this issue (section 1926.451(a)(12), stated simply that “all planking of platforms shall be overlapped (minimum 12 inches), or secured from …

What is the minimum width of working platform?

Not be less than 100 mm, subject to a minimum of 50 mm at the top. d is average of the diameters at the top and the bottom.

Do you need to tie off on scaffolding?

With suspended scaffolding, you are required to be tied-off at all times. For one or two-point suspension scaffolding, you must be tied-off to an anchor point or a fall protection system, completely independent of the scaffold you’re working on.

How do you calculate scaffolding load?

The type of scaffolding being used is rated as light-duty, or 25 pounds per square foot. Multiply 35 square feet by 25 pounds per square foot and the scaffolding can be loaded with no more than 875 pounds.

Is scaffolding measured in m2?

m2 of scaffold The Length x Height (to the top lift) measured in 1m x 1m squares. This method is not recommended for scaffolds where the Width is an important, changing factor, such as birdcages.

What is the most commonly used type of scaffold?

Supported scaffolding is typically the go-to choice for many jobs. Unlike suspended scaffolding, supported scaffolds are built from the ground up. Its safety and efficiency make it the most common type of scaffold, and it is often used in construction.

What are the four types of scaffolding?

• Independent Scaffolding:
• Single Scaffolding:
• Double Scaffolding:
• Needle Scaffolding:

What is a cantilever scaffold?

Cantilevered scaffolding is a form of scaffolding that is usually used to overcome obstacles that prevent a scaffolding tower being erected, or reduce the chances or damage occurring to the structure beneath the cantilevered area.

Can a ladder be used on scaffold?

In most instances, scaffolds should be capable of supporting at least four times its maximum intended load. Don’t use boxes or ladders to increase your work height. … Don’t use stilts unless the guardrails on the scaffold have been extended to a height that is equal to the height of the stilts.

What are 5 requirements for scaffolding?

• Robb Tinney, Safety Advisor. Safety Management Group.
• Start with training.
• Follow the instructions.
• Consider the hazards.
• Use a tagging system.
• Inspect and re-inspect.
• One more: respect their complexity.

Does scaffolding need to be inspected?

A scaffold used for construction should be inspected before it is used for the first time and then every 7 days, until it is removed. It should also be inspected each time it is exposed to conditions likely to cause deterioration eg following adverse weather conditions or following substantial alteration.

What is rakers in scaffolding?

In scaffolding, a raker is an inclined scaffold tube having a bearing upon the ground or an adjacent structure.

What is scaffolding bracing?

Scaffold Brace: A rigid connection that holds one scaffold member in a fixed position with respect to another member, or to a building or structure.

What is name of scaffold?

The 8 types of scaffoldings are trestle, steel, patented, suspended, cantilever, single, double, kwikstage scaffolding etc. To understand these Scaffoldings completely lets first learn its definition and then the uses of various Type of Scaffoldings, and their uses.

How thick is a scaffold pole?

Scaffold tube should be made to EN39 and be galvanised steel. They should have a diameter of 48.3mm and a 3.2mm – 4.0mm wall thickness. Tubes should appear straight visually and not deviate by more than 15mm in any 3m length. This is where the tube has been used as a means of hitting another object.

What is a scaffold outrigger?

Outrigger: The structural member of a supported scaffold used to increase the base width of a scaffold in order to provide support for and increased stability of the scaffold.

How high can a free standing scaffold be?

Model (not using outriggers)Total height* at which restraint is required6-foot (29 inches wide)over 9.668 feet7-foot (40 inches wide)over 13.332 feet

Do they use bamboo for scaffolding in China?

That material is bamboo, and Hong Kong is one of the last places in the world where it is still widely used as a building material, primarily for scaffolding and seasonal Cantonese opera theaters. Bamboo has a long history in Chinese culture.

What should you do before dismantling a scaffold?

The first step in the dismantling process is to clear a space where the scaffolding components can be set down and stacked in an organised and safe manner. Access for a vehicle to transport the components to a loading area should be provided wherever possible with a clear path to carry them from the structure.

What wood is used for scaffolding?

Wood, such as fir or pine, is the most common material. High-quality wooden planks, such as Kennison Forest Products solid sawn scaffold planks or sure-lam LVL (laminated veneer lumber) scaffold planks, provide durable, safe planking solutions.

What is the maximum width of spacing between scaffold planking under normal conditions?

The standard requires that the space between the scaffold planks or between scaffold planks and uprights be no more than one inch wide unless the employer can demonstrate that a wider space is necessary.
