The use of tandem circuit breakers is a perfectly acceptable practice, as long as the panelboard is designed for tandem circuit breakers and they’re installed in locations within the panelboard where they’re allowed.

How many tandem breakers can you put in a 200 amp panel?

Most 200-amp breaker panels have 40 to 42 slots of single-pole breakers or 20 slots for double pole breakers. And although a 200 amp panel has many places for circuit breakers, that does not mean you can use all of it.

Do tandem breakers share neutral?

Limitations for Tandem Breakers In such configurations, where two hot wires feeding separate circuits share a common neutral wire, the hot wires must be connected to different hot bus bars. … Another limitation of the tandem circuit breaker is that it cannot take as much heat as a standard single circuit breaker.

Is Double tapping a circuit breaker acceptable?

Double tapped breakers are an unsafe condition in which multiple conductors are placed under the set screw of a single breaker. When multiple wires are connected to a breaker, you greatly increase the risk of a loose connection, which can lead to overheating, arcing, and electrical fires.

What breakers are interchangeable?

Specified breakers are breakers that have been tested and listed for a panel by the manufacturer. Interchangeable breakers are breakers that have been tested in the panels that they are approved for and are similar to specified breakers, typically by a third party such as Underwriter’s Laboratory (UL).

Can I use a tandem breaker for 220v?

Tandem Circuit Breaker A 220 volt circuit will be double-pole and take up two slots. Tandem circuit breakers are a workaround to this normalcy, and it will put two 120-volt circuits in one slot. The circuits rest side-by-side within one body, and each circuit has its own toggle switch.

Can you put two wires one breaker?

You CAN NOT put two wires under a breaker unless the manufacturer allows it. You CAN wire but the wires together and put a tail under the breaker. If the breaker overloads and trips, then you will need to add a breaker. FO NOT put a breaker in larger than the smallest wire is rated for.

What is the maximum number of circuit breakers in a panel?

The National Electrical Code (NEC) specified that a lighting and appliance branch circuit panelboard could not contain more than 42 overcurrent devices (circuit breakers). That was the absolute maximum, unless the manufacturer specified a lower number, which was often the case for smaller panel boxes.

Can you use a tandem breaker for 240V?

As others have mentioned, it’s not possible to get 240 volts from a single pole in a 120/240V split phase system. Each tandem breaker provides 2 120 V circuits, this is true. However, if you measure between the terminals on a single tandem breaker, you’ll get 0 volts.

Can you pigtail in a breaker box?

Pigtails in a panel are fine… Wire-splicing and pigtailing within a loadcenter cabinet (panel enclosure) is expressly permitted by NEC 312.8(A), and is quite safe (provided the splices are made up properly, of course): (A) Splices, Taps, and Feed-Through Conductors.

Article first time published on

Can you have two breaker boxes?

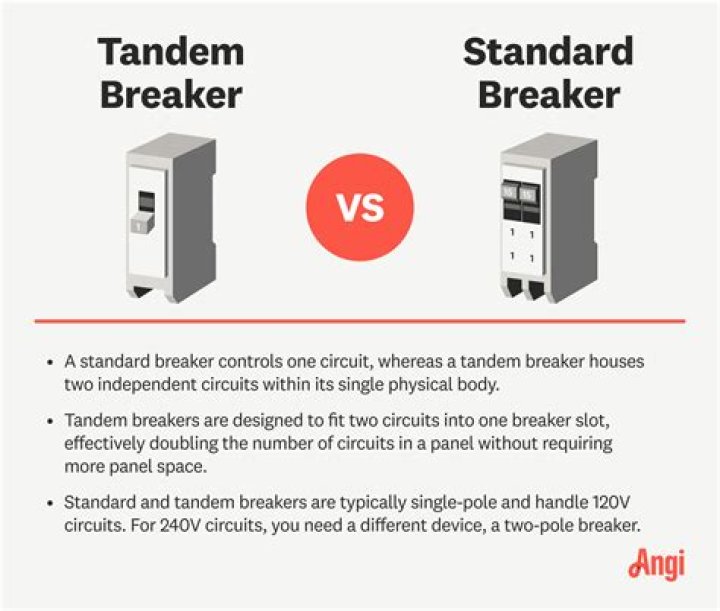

The overall size of a tandem circuit breaker is the same as that of a standard breaker, but instead of a single breaker, it has two narrow side-by-side breakers. You can buy tandem circuit breakers where both sides are 20-amp breakers, both are 15-amp breakers, or one side is 15 amps and the other side is 20 amps.

Can I use one side of a double pole breaker?

A double pole switch can be used to control light and a fan or 2 lights on separate circuits. It is easy to wire a double pole switch to work as a single pole switch because only one side is used instead of both.

Where are tandem breakers allowed?

Because tandem circuit breakers allow for two circuits to be installed on a panelboard in a one circuit breaker space, they’re typically used after a panelboard has been filled to capacity with standard circuit breakers. Because of this, they’re often referred to as “cheaters.”

How many receptacles can be on a 20 amp circuit?

The answer to the question how many outlets on a 20 amp circuit is ten outlets. Always comply with the 80% circuit and breaker load rule, allowing a maximum load of 1.5 amps per receptacle. Remember that your circuit, wire sizes, and outlets must be compatible to avoid overheating and electrical hazards.

What is a piggyback circuit breaker?

A double circuit breaker takes the space of a single circuit breaker on a panelboard. Depending on local customs, they are called duplex, slimline, twin, half-height, half-inch, double and waferbreakers.

Can I replace a double pole breaker with two single pole breakers?

Can I replace a double pole breaker with two single pole breakers? Two pole breakers to one pole breaker. You’ll have to return to the double-pole breaker if you decide to use the red wire again. Two single-pole breakers can’t be used for a multiwire circuit.

Can I replace a circuit breaker myself?

You can replace the circuit breaker by just removing the panel cover. Once you have removed the cover then you can disconnect the wire from the faulty breaker and pull it out of the way. … Take note of how the breaker fits in the panel and locks into position so that you can put the new circuit breaker in correctly.

Why are two circuit breakers connected?

Inside your breaker box or main service panel are energized metal plates, called “hot” bus bars. Each pole, or connection point, on the bars, carries 120 volts of electricity. … This causes the other half of the breaker to trip at the same time because the two halves are tied together by the single breaker bar or toggle.

How many piggyback breakers are allowed in a panel?

Up to 10 tandem circuit breakers can be used. G3030BL1150 = 30 spaces, 30 total circuits allowed.

Can you tie 2 hot wires together?

Connect all your hots together, and all your negatives, you increase amps. The same can be done with two power supplies, connecting hots together and negatives together increases amps.

Can I replace a tandem breaker with a single pole breaker?

Amperage may vary depending on the specific circuit you put in and the required cable gauge will be affected as well. A single pole tandem circuit can go into a circuit breaker only where the circuit breaker designates spots for it.

Is a double 30 amp breaker the same as a 60 amp breaker?

A main breaker is the same as any double breaker in the box, except that it supplies power to each busbar. The answer is no if you want to draw 60 Amps off a 30 Amp double breaker.

Does a 30 amp double pole breaker have 30 amps on each leg?

A 30 amp double pole or two pole breaker gives you a total of 30 amps on each leg before it is supposed to trip.

What size breaker do I need for a 240v welder?

For example, 240-volt, 40- to 50-input amp welders will require a 50-amp circuit breaker and 6-gauge wiring. Welders operating at 30 to 40 input amps require a 40-amp breaker and 8-gauge wire.

Is a double pole breaker 220?

In a double pole breaker, the electric panel, where the power comes from the transmission line, is wired to each circuit in the house. The line voltage is more or less limited by a transformer mounted on the power pole. This is often reduced to 220 volts from wire resistance and other factors.

What is the 42 circuit Rule?

Definition of the 42 Circuit Rule “. . . having more than 10 percent of its overcurrent devices protecting lighting and appliance branch circuits. Such circuits have a connection to the neutral of the panelboard and overcurrent protection of 30 A or less in one or more conductors.”

How many breakers are allowed in a 100 amp panel?

Typical 100-amp panels have 20 circuits, meaning they can handle 20 full-sized breakers. 20/24 panels can hold 16 full-sized and 4 twin breakers (24 circuits in total). The number of breakers can max out to 30-42, too, depending on the design of your 100-amp pane.

Can you feed a 100 amp sub panel with a 50 amp breaker?

As the panel is rated at 100 amps the 50 amp breaker can be used for any circuit in the panel. However, everything on the circuit would then need to be rated for 50 amps or better. Few circuits require 50 amps and most of the equipment in your house is not rated for it.

Can you splice a neutral wires in an electrical panel?

Nothing wrong with splicing the neutrals in a panel as long as it’s done properly. This is sometimes a fix for “double tapped” neutrals. Splices are permitted by the NEC. cross-sectional area of that space.

Can you splice a neutral wire?

Yes. However, continuity of the neutral conductor of a multiwire branch circuit must not be interrupted by the removal of a wiring device [300.13(B)]. In these applications, the neutral conductors must be spliced together and a “pigtail” provided for the wiring device.

How many outlets can be on a 15 amp circuit?

Technically, you can have as many outlets on a 15 amp circuit breaker as you want. However, a good rule of thumb is 1 outlet per 1.5 amps, up to 80% of the capacity of the circuit breaker. Therefore, we would suggest a maximum of 8 outlets for a 15 amp circuit.
