Aluminium filters are a set thickness and density to only absorb these very low energy photons before they even leave the x-ray tube. Therefore reducing patient dose and scatter to produce a clearer image.

Why is aluminum used for filtration in x-ray?

Aluminium filters are a set thickness and density to only absorb these very low energy photons before they even leave the x-ray tube. Therefore reducing patient dose and scatter to produce a clearer image.

What material is primarily used for x-ray filtration?

Filters for medical radiography are usually made of aluminum (Al). The amount of both the inherent and the added filtration are stated in mm of Al or mm of Al equivalent. The amount of filtration of the x-ray beam is specified by and based on the voltage potential (keV) used to produce the beam.

What is the purpose of the aluminum filters?

The purpose of the aluminum filter is to remove the low-energy, long-wavelength, least penetrating x-rays from the beam. X-ray machines operating at 70 kVp or greater must have aluminum filtration of 2.5 mm.

What is the purpose of the collimator?

collimator, device for changing the diverging light or other radiation from a point source into a parallel beam. This collimation of the light is required to make specialized measurements in spectroscopy and in geometric and physical optics.

What is the advantage of wedge filter?

It eliminates the randomness sometimes found in cheaper screens and allows for precise quality control. A wedge wire filter is said to be a brewer’s best friend, and many other industries rely on stainless steel wedge wire screen to be sure that there will be no contaminants in their products.

Why are filters used in x-ray equipment?

Filters are metal sheets placed in the x-ray beam between the window and the patient that are used to attenuate the low-energy (soft) x-ray photons from the spectrum. … Using a filter reduces the ESD and to a lesser extent effective dose for the patient 1.

What is filtration of an x-ray beam?

Filtration, the process of attenuating and hardening an x-ray beam, is traditionally quantified in units of mm Al (aluminum) or the thickness of an aluminum filter that would have the same effect on the beam. The filtration provided by the x-ray tube housing assembly itself is termed the inherent filtration.

What is the primary purpose of beam filtration quizlet?

What is the primary purpose of x-ray beam filtration? To remove low-energy x-rays, which only increase patient dose without contributing to the image.

What is Xray beam?

The x-ray beam is polyenergetic (many energies) and consists of a wide range of energies known as the x-ray emission spectrum. The lowest energies are always approximately 15 to 20 keV, and the highest energies are always equal to the kVp set on the control panel.

Article first time published on

What determines the quality of the x-ray beam?

The beam quality is controlled by the kilovoltage. The kVp regulates the speed of electrons traveling from the cathode to the anode and determines the penetrating ability of the x-ray beam. When the kVp increases, the resulting x-ray beam is of higher energy and increased penetrating ability (Figure 5).

What is the role of the primary beam?

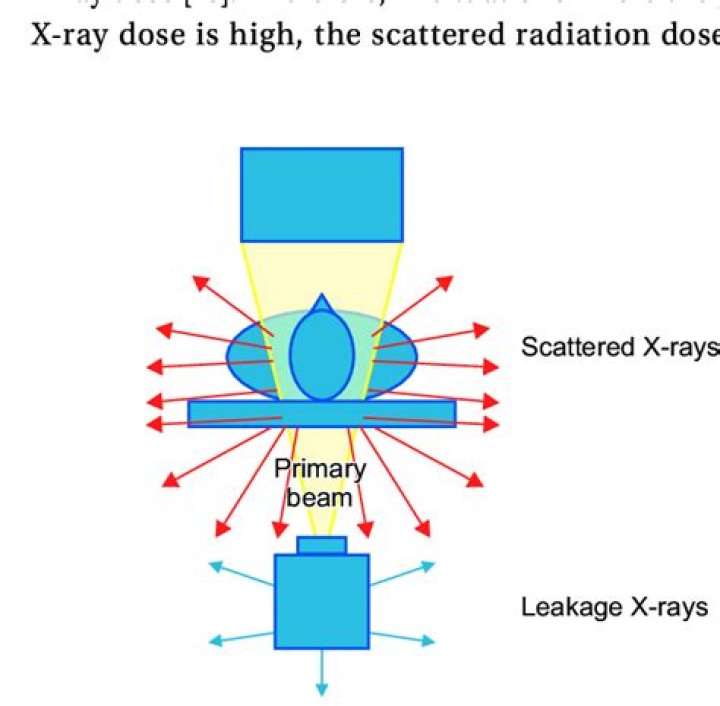

Primary beam means radiation which passes through an aperture of the source housing on a direct path from the x-ray tube. Primary beam means ionizing radiation emitted from the target and passing through the window of the x-ray tube housing.

Why is molybdenum used in x-rays?

The anode converts the energy of incident electrons into x-rays dissipating heat as a byproduct. … Molybdenum is also often used as the target material for anodes used in mammography because it has an intermediate atomic number (Z=42) and the produced characteristic x-rays are of energies suited for this purpose.

How does filtration affect the primary beam?

The addition of filtration significantly alters the shape of the x-ray spectrum, as shown below. Since filtration selectively absorbs the lower energy photons, it produces a shift in the effective energy of an x-ray beam.

What are wedge filters made of?

The most common form of compensator is the wedge filter. These wedges are normally constructed of brass, steel, or lead. When placed in the beam, they cause the isodose curves to be angled relative to the central axis.

What is wedge filter?

Wedge filter means a filter which effects continuous change in transmission over all or a part of the useful beam.

Why is a filter used on an x-ray tube?

Filters are metal sheets placed in the x-ray beam between the window and the patient that are used to attenuate the low-energy (soft) x-ray photons from the spectrum.

What filtration is used in the x-ray tube?

There are two types of filtration 2: inherent filtration from components in the x-ray tube, i.e. window, housing, cooling oil (equivalent to 0.5-1.0 mm Al) added filtration from interchangeable metal sheets (Al, Cu, etc.)

What makes a particular material suitable as a filter for a particular x-ray anode material?

From the table it can be seen that the ideal choice of material for an X-ray filter is a metal whose atomic number, Z, is one less than that of the anode target metal for first row transition metals (or two less for second row transition metals).

What are the three characteristics of the x-ray beam?

What are the three characteristics of the x-ray bean? Quality, quantity and intensity.

What is the best way to alter the quality of an x-ray beam?

Beam hardening: It refers the process in which the quality, or energy, of an x-ray beam is increased by removing lower- energy photons with appropriate filtration. 16.

What factors affect x-ray quality?

Key x-ray choices include the voltage across the x-ray tube (kilovoltage), the size of the x-ray tube current (milliamperes), and the imaging exposure time (seconds) [6, 7]. Although artifacts in radiographic imaging are of obvious importance for image quality, these are beyond the scope of this article [8].

What metal is used in X-ray machine?

Tungsten is the element most commonly used to make X-rays.

Why Molybdenum is used as the target material?

A heavy element and can easily absorb high velocity electrons.

Why Molybdenum is used as the target?

Molybdenum is used as a target element for production of X – rays because it is. In X-ray tube , target must be heavy element with high melting point.

Which of the following types of radiation monitors contains aluminum oxide?

STIMULATED LUMINESCENCE (OSL) DETECTORS These are widely used by radiologic technologists as well as industrial workers. The badge contains a sheet of radiation-sensitive aluminum oxide sealed in a light and moisture proof packet.
