A junction box performs several essential functions: Encloses the wiring connections and protects them from physical damage. Provides a means for mounting the electrical device and securing the electrical cable(s) serving the device. Prevents accidental contact with live wires and terminals.

.

Besides, what is the purpose of a junction box?

A junction box is an enclosure that protects a connection (the junction) of two or more wires carrying electrical current. When a junction box is used for every electrical connection in a building it is much easier to locate and repair any electrical problems that come up.

Also Know, do I need a junction box to extend wiring? If you do need to extend the wires, yes, a junction box would be needed. It must remain accessible.

Then, when should I use a junction box?

Whenever you splice wires together while installing residential circuitry, the electrical code requires you to enclose the connections in a junction box. This safety measure prevents fires that can occur when the wires overheat and also protects people from getting shocked by live wires.

Are junction boxes bad?

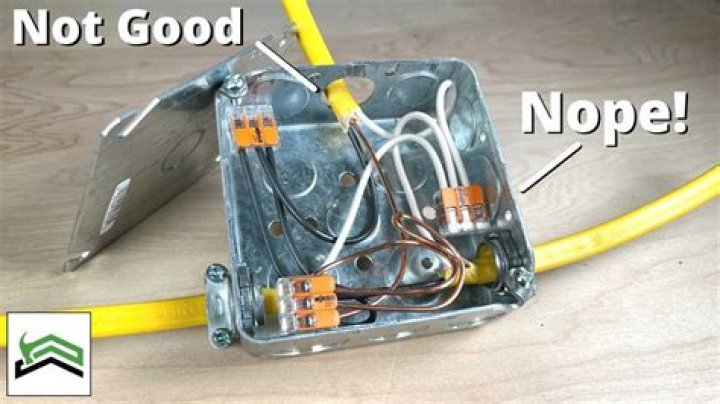

Overfilling a Junction Box Cramming too many wires into a junction box is not only dangerous, but it's against the National Electrical Code. Plastic junction boxes are stamped with their approved volume; you may have to calculate the volume of a steel box on your own.

Related Question Answers

Does a junction box need to be grounded?

No, you do not have to attach a grounding wire directly to the metal enclosure if you are just using it as a pull point and you are otherwise grounding it using continuous runs of EMT.

How many wires can go in a junction box?

Each switch, outlet, or other device counts as two wires.

Can a handy box be used as a junction box?

Handy Box: Mounts on the surface of a wall. Can contain light switches or receptacle Ideal for areas where behind-the-wall installation is difficult or not possible. Junction Box: Wires connect only to each other, never to a switch, receptacle or fixture.

Can you put a junction box in a wall?

A junction box, also known as a splice or switch box, is an electrical enclosure inside your home that contains wiring. Electrical wires run behind the walls and through the ceiling of your home, meeting at junction boxes. It is a safety hazard to completely bury a junction box in a wall.

What are the rules for a box junction?

These have criss-cross yellow lines painted on the road (download 'Road markings'). You MUST NOT enter the box until your exit road or lane is clear. However, you may enter the box and wait when you want to turn right, and are only stopped from doing so by oncoming traffic, or by other vehicles waiting to turn right.

Should I use plastic or metal electrical boxes?

Plastic boxes don't use metal cable clamps and do not provide the required grounding path. Metal electrical boxes are primarily used with metal-sheathed or "BX" wiring. However, they can also be used with Romex or NM wiring if desired. Most new residential electrical systems use Romex and plastic boxes.

What happens if you do not connect the ground wire?

The appliance will operate normally without the ground wire because it is not a part of the conducting path which supplies electricity to the appliance. In the absence of the ground wire, shock hazard conditions will often not cause the breaker to trip unless the circuit has a ground fault interrupter in it.

Are junction boxes legal?

The National Electrical Code (NEC) dictates that no wiring splices are allowed outside of an approved enclosure. One type of approved enclosure is a junction box. Junction box covers must remain accessible; they cannot be covered with drywall or other surface material.

Can I install a light fixture without a junction box?

If you're wondering how you install a light fixture without an electrical box, the short answer is that you don't. You can't install a light fixture without a junction box, but the fact that there's no box at the spot where you want to install the light doesn't mean you can't install the light.

Can I put a junction box in the attic?

Junction Boxes in Insulated Attics In this case, the boxes will open into the attic; occasionally they're uncovered. Since insulation is combustible, you must install face plates on all attic junction boxes to prevent contact between bare wires and insulation materials.

How do you replace a junction box?

Follow the National Electrical Code (NEC) when replacing a junction box.

1. Turn the main breaker off in the panel box or, if you know which circuit is in the junction box, turn off the breaker to the circuit.
2. Remove the cover from the junction box you are replacing.
3. Remove all of the wire nuts from all of the connections.

Where are junction boxes located?

Junction boxes are often located on walls near compressors, pumps or large pieces of equipment.

Is it OK to splice electrical wire?

Safety Considerations Spliced wires are not to be held together with electrician's tape. Electrical wires are never left on their own in the wall cavity or ceiling. Instead, all splices must be contained within a junction box and the individual wires attached with wire nuts.

Can I splice into a electrical wire?

A splice is the joining of two or more wires by twisting them together. Use a wire nut size appropriate for the number and gauge of the wires you're using. Wire splice connections must be housed inside a covered electrical box, known as a junction box. A junction box is usually square and made of metal.

How do you install a ceiling light without a junction box?

1. Step 1 - Turn Off the Power.
2. Step 2 - Remove the Old Light Fixture.
3. Step 3 - Find Closest Stud.
4. Step 4 - Cut Out Hole for Junction Box.
5. Step 5 - Attach Junction Box to Stud.
6. Step 6 - Insert Wiring into Junction Box.
7. Step 7 - Wire the Light Fixture.
8. Step 8 - Attach Light Fixture to Junction Box.

How do you reroute electrical wires?

How to Reroute Electrical Outlets

1. Turn off power to the electrical circuit by turning off the breaker in the circuit breaker panel.
2. Unscrew and remove the electrical outlet wall plate cover.
3. Open up the drywall around the electrical box to see where the wire feeds from.
4. Remove the electrical box and disconnect the electrical wire from the box.

How many 12 wires are in a junction box?

To calculate this, you add the number of wires (not counting grounds), plus one for any grounds, and plus two for every device in the box (receptical, switch, etc). In your case, you have 12 wires, plus 1 for grounds, , no devices, so you count it as 13 wires. The fill is then based on the size of the wires.

Can you extend electrical wire?

Whether you're swapping in a new light fixture or adding an outlet in the garage, you'll probably need to reconnect wires, connect a new wire to an old one, or extend a few wires. In other words, you'll need to do some splicing.

Can you splice wires in a breaker box?

Wire splices can be made inside of a panel to correct a multiple wire connection (and yes, sometimes the electrician will do this on an original installation) but, if two different wire sizes are being 'pigtailed' to a breaker, the breaker must be sized for the smaller wire to avoid a possible overload hazard.
