This page describes difference between RF(Radio Frequency) and IF(Intermediate Frequency). This concept is used to convert IF signal to RF signal. RF to IF conversion is achieved using a RF device called Down-converter. Heterodyne and homodyne receiver architectures are used to convert modulated RF signal to IF signal.

.

Keeping this in view, what is intermediate frequency transformer?

r′mēd·ē·?t ¦frē·kw?n·sē tranz′fōr·m?r] (electronics) The transformer used at the input and output of each intermediate-frequency amplifier stage in a superheterodyne receiver for coupling purposes and to provide selectivity. Abbreviated i-f transformer.

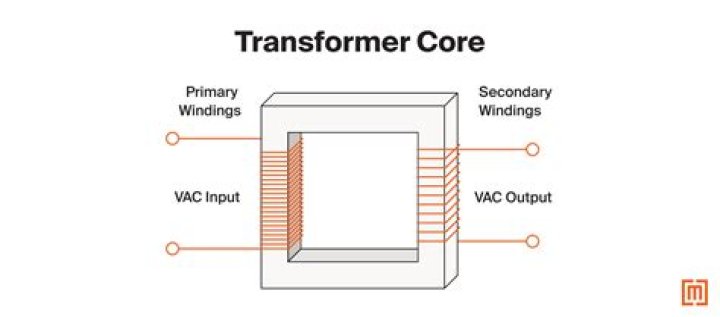

Beside above, what is core type transformer? A 'core type' transformer core is one in which the primary windings and secondary windings are placed around each of the limbs, as opposed to a 'shell type' core, in which the two windings are placed across the centre core.

Also asked, what are the two main types of transformers?

The different types of transformer are Step up and Step down Transformer, Power Transformer, Distribution Transformer, Instrument transformer comprising current and Potential Transformer, Single phase and Three phase transformer, Auto transformer, etc.

What type of transformer is used in power stations?

Laminated core This is the most common type of transformer, widely used in electric power transmission and appliances to convert mains voltage to low voltage to power electronic devices. They are available in power ratings ranging from mW to MW. The insulated laminations minimizes eddy current losses in the iron core.

Related Question Answers

Why is intermediate frequency 455?

Uses. Perhaps the most commonly used intermediate frequencies for broadcast receivers are around 455 kHz for AM receivers and 10.7 MHz for FM receivers. A first intermediate frequency may even be higher than the input signal, so that all undesired responses can be easily filtered out by a fixed-tuned RF stage.

What is difference between RF and IF?

Originally Answered: what is the difference between RF and IF frequency? Relation Between RF and IF : See the figure below. When the IF is up-converted (The frequency of IF is increased) through an UC (Up-converter) by adding it to the Local Oscillator frequency (LO), the new frequency obtained is called an RF.

What is IF bandwidth?

IF Bandwidth. The received signal is converted from its source frequency to a lower intermediate frequency (IF). The bandwidth of the IF bandpass filter is adjustable from 40 kHz (for most PNA models) down to a minimum of 1 Hz. Reducing the IF receiver bandwidth reduces the effect of random noise on a measurement.

What is an RF downconverter?

RF upconverters are designed to convert microwave signals to a higher frequency range. By contrast, RF downconverters are designed to convert microwave signals to. an intermediate frequency (IF). RF upconverters and RF downconverters that can upconvert or downconvert the frequency of a signal are also available.

What is RF and IF signal?

An RF (or IF) mixer (not to be confused with video and audio mixers) is an active or passive device that converts a signal from one frequency to another. It can either modulate or demodulate a signal. It has three signal connections, which are called ports in the language of radio engineers.

What is RF stage?

RF stage. (Radio Frequency stage) The frequency used to carry a radio signal (radio station, TV channel, cellphone channel, etc.). The RF signals are converted to an intermediate stage for demodulation. See IF stage.

What is RF communication?

A radio frequency (RF) signal refers to a wireless electromagnetic signal used as a form of communication, if one is discussing wireless electronics. Radio waves are a form of electromagnetic radiation with identified radio frequencies that range from 3kHz to 300 GHz.

What is the function of IF stage?

Function of the I-F Amplifier Stage: Accepts the intermediate frequency signal from the converter, amplify it and pass it on to either, the next I-F stage (if the receiver has one), or to the detector stage.

How is AC converted to DC?

A rectifier is an electrical device that converts alternating current (AC), which periodically reverses direction, to direct current (DC), which flows in only one direction. The process is known as rectification, since it "straightens" the direction of current.

What is OSR in transformer?

The protective Oil Surge Relay (OSR) is used to protect the malfunction developed inside the On Load Tap Changer (OLTC). This protective relay triggers the tripping circuit when the oil flow exceed the specified limits, thus making the transformer to be turned off and contain the damager to the OLTC and Transformer.

What is the purpose of Transformer 2?

Transformers (sometimes called "voltage transformers") are devices used in electrical circuits to change the voltage of electricity flowing in the circuit. Transformers can be used either to increase the voltage (called "stepping up") or decrease the voltage ("step down").

What is kVA rating of transformer?

kVA stands for Kilovolt-Ampere and is the rating normally used to rate a transformer. In many circumstances the power required by the load is equivalent to the rating of the transformer expressed in either VA or kVA. For example a 1KW (1000 Watts) load would require a 1kVA transformer @ unity power factor.

Why are transformers used?

A transformer is a device that is used to either raise or lower voltages and currents in an electrical circuit. In modern electrical distribution systems, transformers are used to boost voltage levels so as to decrease line losses during transmission.

Where are transformers used in everyday life?

Transformers are also useful in stopping the flow of electricity and interrupting an electric current. Transformers are commonly present in circuit breakers, where they utilize a switch to automatically interrupt the flow of electricity and to prevent damage that can occur as a result of high voltage.

Why is a transformer rated in KVA?

Iron loss and copper loss occurring in the transformer are also independent of the power factor. Transformers are rated in kVA because the losses occurring in the transformers are independent of power factor. KVA is the unit of apparent power. It is a combination of real power and reactive power.

What is an Isinductor?

An inductor is a passive electronic component that storesenergy in the form of a magnetic field. In its simplest form, an inductor consistsof a wire loop or coil. Ferromagnetic substances such as iron, laminated iron, and powdered iron increase the inductance obtainable with a coil having a given number of turns.

How transformers are classified?

The transformer types could be classified according to their power rating, voltage, current, weight, type of cooling etc., but such approach would have a limited applicability. In a three-phase system, the single-phase units are used in a bank of three transformers linked together.

How many cores are there in transformer?

two

What type of transformer core is most efficient?

Toroidal cores are more efficient at handling the same kind of energy load than steel laminated E shape cores, and can be made smaller, lighter, and with a lower magnetic field. However, windings tend to be more expensive for toroidal cores.
