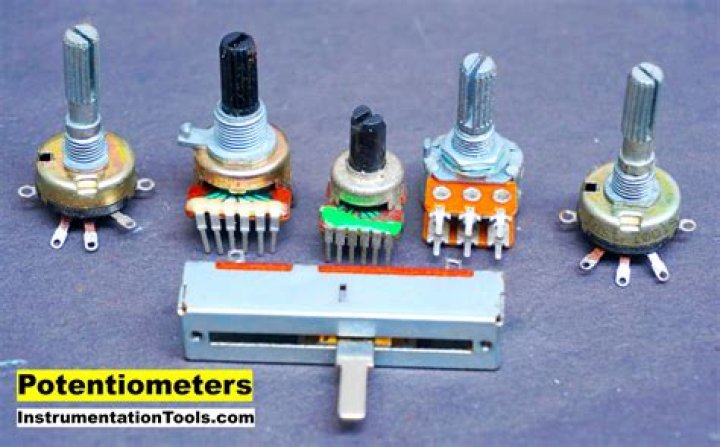

Potentiometers are commonly used to control electrical devices such as volume controls on audio equipment. Potentiometers operated by a mechanism can be used as position transducers, for example, in a joystick.

.

Considering this, how does the potentiometer work?

Potentiometers work by having a resistive element inside. Both end terminals are attached to it, and do not move. The wiper travels along the strip when the knob is turned. The symbol for a potentiometer is the same one as a resistor, save for an arrow in the middle.

Similarly, why do potentiometers have 3 pins? A 3 terminal pot used with 3 terminals, is basically just a voltage divider. As you move the wiper, you increase one resistor in the voltage divider, while decreasing the resistance in the other. So long as the wiper is connected to one leg of the potentiometer, it will behave a variable resistor.

Also to know is, what are the 3 terminals on a potentiometer?

A potentiometer has 3 pins. Two terminals (the blue and green) are connected to a resistive element and the third terminal (the black one) is connected to an adjustable wiper. The potentiometer can work as a rheostat (variable resistor) or as a voltage divider.

Does a potentiometer change voltage?

Potentiometers, trimmers, and rheostats are all variable resistors. Potentiometers and trimmers are used to create a variable voltage by varying the voltage between their wiper terminal and two ends. Rheostats are used to vary the amount of current.

Related Question Answers

What is the function of rheostat?

A rheostat is a variable resistor which is used to control current. They are able to vary the resistance in a circuit without interruption. Rheostats were often used as power control devices, for example to control light intensity (dimmer), speed of motors, heaters and ovens.

How many types of potentiometers are there?

two types

What do you mean by LDR?

What is an LDR (Light Dependent Resistor)? An LDR is a component that has a (variable) resistance that changes with the light intensity that falls upon it. This allows them to be used in light sensing circuits. A typical LDR. LDR Circuit Symbol.

How does a 10k potentiometer work?

A potentiometer is a three-terminal resistor with a sliding or rotating contact that forms an adjustable voltage divider. If only two terminals are used, one end and the wiper, it acts as a variable resistor or rheostat.

What are the types of resistance?

Different Types of Resistors and Its Color Code Calculation in Electronics

• Different types of Resistors.
• Wire wound Resistors.
• Metal film Resistor.
• Thick film and Thin film Resistors.
• Surface mount Resistors.
• Network Resistors.
• Variable Resistors.
• Light-dependent Resistors.

Does potentiometer have polarity?

A potentiometer usually has no anode or cathode. Polarity usually does not matter for potentiometers.

How is rheostat connected in a circuit?

To connect it, think of it the same as a resistor. To make a potentiometer a 2 terminal device, you just leave the end of the resistive element open. A rheostat is nothing but a manually controlled variable resistor, similar to a volume control, which is placed in series with a circuit to reduce Voltage and/or current.

Can I use a potentiometer to reduce voltage?

A potentiometer, or "pot" is a variable resistor with three terminals and a shaft that can be turned in either direction. Using one of the end terminals and the wipers, create a variable resistor to control or adjust current. Use all three terminals to create a voltage divider to control or adjust voltage.

What is the difference between a potentiometer and a rheostat?

A potentiometer is a three terminal variable resistor, but a rheostat is a two terminal variable resistor. A potentiometer can be used as a rheostat but a rheostat cannot be used as a potentiometer. Potentiometers are often used to vary voltage and rheostats are used to vary current.

What is the application of potentiometer?

There are some applications of potentiometer are given below: The potentiometer is used as a voltage divider in the electronic circuit. The potentiometer is used in radio and television (TV) receiver for volume control, tone control and linearity control. The potentiometer is used in medical equipment.

How does a voltage divider work?

A voltage divider is a simple circuit which turns a large voltage into a smaller one. Using just two series resistors and an input voltage, we can create an output voltage that is a fraction of the input. Voltage dividers are one of the most fundamental circuits in electronics.

How much current can a potentiometer handle?

It's max value is 500 Ω and power rating is 0.2 W, so max current is 20 mA.

How do you wire a LED potentiometer?

Place a 220 Ω resistor into the breadboard so that one end of the resistor is connected to the ground column. Connect the cathode (short end) of an LED to the end of the 220 Ω resistor that is not connected to the ground column. Then, connect a wire between the anode (long end) of the LED to the chipKIT board's pin 7.

What is meant voltage?

Voltage, also called electromotive force, is a quantitative expression of the potential difference in charge between two points in an electrical field. Voltage can be direct or alternating. A direct voltage maintains the same polarity at all times.

What is a linear potentiometer?

Linear potentiometers produce a resistance output that varies according to the displacement or position of a slider or wiper. They are variable resistors with three leads. Two leads connect to the ends of the resistor, so the resistance between them is fixed.

How does a Photoresistor work?

A photoresistor is a type of resistor whose resistance decreases when the intensity of light increases. In other words, the flow of electric current through the photoresistor increases when the intensity of light increases.

How do you change voltage in a circuit?

To divide voltage in half, all you must do is place any 2 resistors of equal value in series and then place a jumper wire in between the resistors. At this point where the jumper wire is placed, the voltage will be one-half the value of the voltage supplying the circuit. The 5V is now 2.5V. VCC is split in half.

What is I in Ohm's law?

A law relating the voltage difference between two points, the electric current flowing between them, and the resistance of the path of the current. Mathematically, the law states that V = IR, where V is the voltage difference, I is the current in amperes, and R is the resistance in ohms.

What is the difference between A and B potentiometers?

500k "A" would denote an audio taper pot, and the "B" suffix would denote a linear taper pot. The only difference is the taper of the pot, or "how gradually it rolls off". Most manufacturers use either (2) audio taper pots for volume + tone or would use audio taper for volume, and linear taper for tone.
