For a 1/2 HP submersible pump, a 15 amp 2 pole breaker would be normal. You can run 12 AWG, but unless the run is very long, 14 AWG is sufficient. Bigger wire would let you switch to a bigger pump later if you wanted. Your pump must be smaller than 1/2 HP for a 4.3 amps @230 volt nameplate.

.

Correspondingly, what size wire is needed for a well pump?

If you are doing residential work, most of the pump cable you use will be in the #6 to #14 AWG range.

Beside above, what size breaker do I need for a 1/2 HP sump pump? For one motor like a sump pump, it is 125% and then next standard breaker. 1/2 hp= 8 amps *1.25= 10 amps, minimum circuit would be 14 and fused at 15.

Also know, how many amps does a deep well pump draw?

For example, if the pump wattage is 2,200 watts, and the voltage is 110 volts, the current is 2,200 /110 = 20 Amps. This is the value of the amps drawn by the well pump.

What is the difference between a 2 wire and a 3 wire deep well pump?

In a 2-wire pump, the relay and start capacitor is located IN the pump itself and the pump is in the well. In a 3-wire pump, the relay and start capacitor is NOT in the pump but usually in your basement inside a Control Box. The pump, of course, is still in the well.

Related Question Answers

What size breaker do I need for a 220 pump?

The manual for your pump probably recommends a breaker size. For a 1/2 HP submersible pump, a 15 amp 2 pole breaker would be normal. You can run 12 AWG, but unless the run is very long, 14 AWG is sufficient. Bigger wire would let you switch to a bigger pump later if you wanted.

Can a 240v well pump run on 120v?

Ignoring power factor, a 120V pump is going to use the same amount of energy (VA 'Volt-Amps') to do the same work as a pump running 240V; the 120V will use more amps than the 240V but the (VA or Watts 'ignoring power factor') will be the same.

Can you wire a well pump backwards?

The pump is AC so you cannot make it run backwards by reversing the leads. Likewise, you cannot hook it up so that it's lifefspan will be reduced. It will either work or trip a breaker.

What is the difference between a well and a borehole?

Basically how we define the difference is: typically a borehole is drilled by machine and is relatively small in diameter. A well is usually sunk by hand and is relatively large in diameter. Back to our American friends, I believe they use the term “well” very loosely which could mean either a well or a borehole.

Does a well pump need a control box?

Things You'll Need Well pumps with control boxes have start and run circuits. During start-up, the control box sends electricity to the pump motor through the start circuit. Once the pump motor reaches operational speed, the control box switches the electrical feed to the run circuit.

What gauge wire do I need for 220?

If you're wiring a 220v, 20-amp outlet to run power tools, you can use the same 12-gauge wire you would use for a 110-volt, 20-amp circuit. Remember that the cable must have an extra hot wire. If the appliance draws 30 amps, you need a different type of receptacle, and the cable needs to be 10-gauge.

How do I calculate wire size?

Divide the voltage running through the cable by your target current. If, for instance, 120 volts will act on the cable, and you want 30 amps to run through it: 120 / 30 = 4. This is your target resistance, measured in ohms. Multiply the cable's length by its material's resistivity.

What size wire do I need for my water heater?

Common Current and Wire Gauge Sizes Wire a hot water heater with wire that's sized to accommodate the heater's current requirement. For example, a 20-amp hot water heater needs 12-gauge wire, a 25-amp hot water heater requires 10-gauge wire, and a 30- to 40-amp hot water heater requires 8-gauge wire.

What size breaker do I need for pool pump?

A typical above ground pool pump will require a 20-amp breaker and use #12 gauge wire to deliver the electricity.

What size well pump do I need?

You will also need to determine the best pump size, depending on your water home needs. Pumps are rated in GPM (gallons per minute). A typical 3- to 4-bedroom home requires 8-12 GPM. When determining your home water needs, add one GPM for every water fixture in your home.

How much are submersible well pumps?

Average Well Pump Prices. An average well pump costs $200 to $800 without installation depending on the type and horsepower. Submersible well pumps cost between $165 and $1,000, deep or shallow-well jet pumps run $95 to $800, hand pumps are $50 to $600, and solar-powered well pumps cost $1,400 to $2,600.

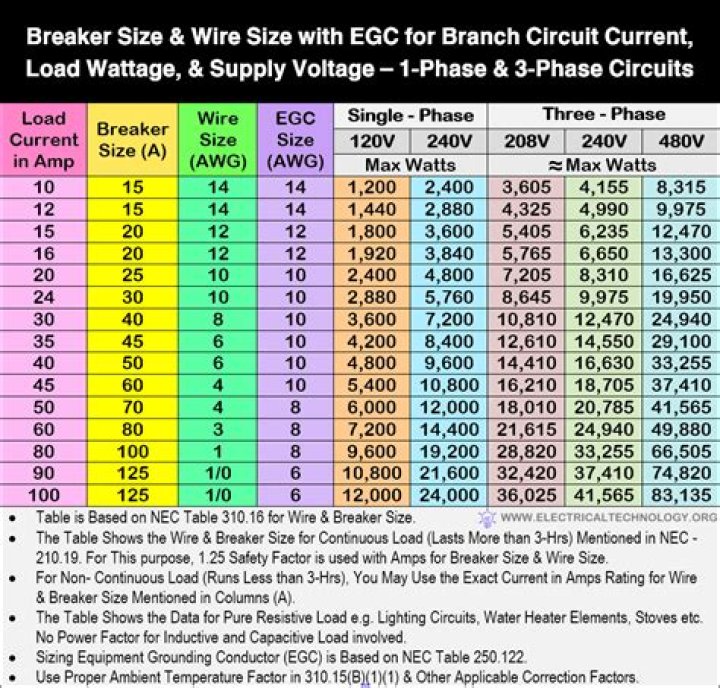

How do you calculate wire size and breaker?

To find the current draw, you just divide this number by the voltage at which it operates, which is either 120 volts or 240 volts. Then, multiply this number by 125 percent. An easy way to do this is to divide it by 100 and then multiply it by 125. The rating of your circuit breaker must be larger than this total.

How much power does a well pump pull?

Consumer reports says a well pump runs about 700 watts. Multiply that by 3 to get a rough estimate of the starting wattage for the pump and you run about 2100 which still leaves plenty of wiggle room in terms of wattage.

What wire do I use for a well pump?

The majority of submersible water well pumps require four wires for installation. There is a red, black, yellow and green ground wire, twisted together to keep the wires compact going into the well. Order your submersible pump electrical wire today.

How many amps does a refrigerator draw?

A typical refrigerator draws 725 watts, according to the United States Department of Energy. Divide that number by 120 volts, which is the voltage of your power supply, to get the current that the refrigerator draws in amperes. A 725-watt refrigerator draws 725/120 = 6 amps.

Why is my septic pump tripping the breaker?

Re: Septic Pump problem: continually tripping the breaker it can be attributed to pump air-lock. between the pump and the check valve drains back into the sump. If the pipe between the pump and the check valve is solid, the air in the line can compress the next time the pump tries to empty the tank.

Should a sump pump be on its own circuit?

The power supply to a sump pump should not only have a dedicated outlet, but should also be a Ground Fault Circuit Interrupter. The sump pump needs its own circuit breaker to prevent tripping of the breaker and the Ground Fault Circuit Interrupter is essential in preventing electrical shock.

How many amps do sump pumps draw?

The nameplate rating on each of the sump pumps was approx. 9.5 amps.
