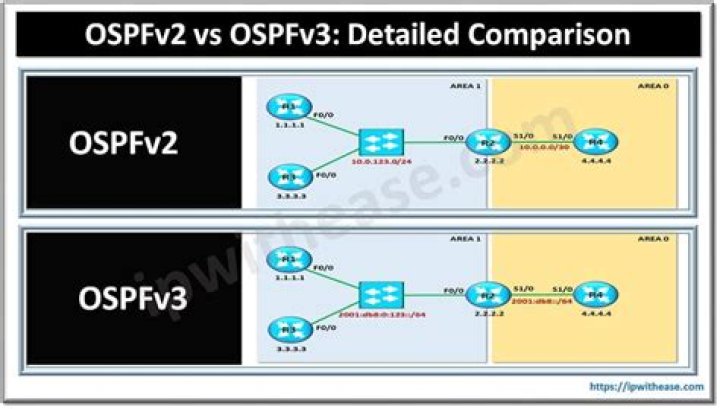

OSPFv2 stands for Open Shortest Path First version 2 and OSPFv3 stands for Open Shortest Path First version 3. OSPFv2 is the IPv4's OSPF version, whereas OSPFv3 is the IPv6's OSPF version. In OSPFv2, many OSPF instances per interface are not supported, whereas in OSPFv3, many OSPF instances per interface are supported.

.

Also question is, what is OSPFv2?

OSPFv2 is an IETF link-state protocol (see the “Link-State Protocols” section on page 1-9) for IPv4 networks. The neighbor routers attempt to establish adjacency, which means that the routers synchronize their link-state databases to ensure that they have identical OSPFv2 routing information.

Also Know, does IPv4 support OSPFv3? OSPFv3 does not only support exchange of IPv6 routes, but it also supports exchange of IPv4 routes. The newest OSPFv3 configuration approach utilizes a single OSPFv3 process. It is capable of supporting IPv4 and IPv6 within a single OSPFv3 process.

Considering this, what are two enhancements that OSPFv3 supports over OSPFv2?

• It can support multiple IPv6 subnets on a single link.
• It requires the use of ARP.
• It routes over links rather than over networks.
• It supports up to 2 instances of OSPFv3 over a common link.

How do I enable OSPFv2?

Benefits of Enabling OSPFv2 on an Interface Basis Alternatively, you can enable OSPFv2 explicitly on an interface by using the ip ospf area command, which is entered in interface configuration mode. This capability simplifies the configuration of unnumbered interfaces with different areas.

Related Question Answers

What do u mean by routing?

Routing is the process of selecting a path for traffic in a network or between or across multiple networks. Packet forwarding is the transit of network packets from one network interface to another. Intermediate nodes are typically network hardware devices such as routers, gateways, firewalls, or switches.

Why is Eigrp used?

Enhanced Interior Gateway Routing Protocol (EIGRP) is an advanced distance-vector routing protocol that is used on a computer network for automating routing decisions and configuration. One of the major reasons for this was the change to classless IPv4 addresses in the Internet Protocol, which IGRP could not support.

Why BGP is used over OSPF?

OSPF would require intensive use of memory as well as CPU resources. With BGP on the other hand, the size of the routing table is going to be dictated the required device resources. BGP is considered to be more flexible as well as scalable than OSPF and it would be also used on a larger network.

Why we use OSPF?

The idea behind the OSPF areas is to lower the amount of routing traffic and lower the processing of your core routers. Different areas are connected with each other through Area Border Router (ABR). OSPF is link state routing protocol and you can tune a link state routing protocol to converge fast.

Why OSPF is called Link State?

The OSPF protocol is a link-state routing protocol, which means that the routers exchange topology information with their nearest neighbors. The topology information is flooded throughout the AS, so that every router within the AS has a complete picture of the topology of the AS.

What happens when a router receives a packet with a TTL of 0?

RFC 791 requires that a router destroy any datagram with a TTL value of zero. When an IP packet is received with a TTL less than or equal to one and is expected to be forwarded by the router, the router is required to drop the packet and reply back to the source with an ICMPv4 Type 11, Code 0 Time Exceeded message.

What is MPLS network?

Multiprotocol Label Switching (MPLS) is a routing technique in telecommunications networks that directs data from one node to the next based on short path labels rather than long network addresses, thus avoiding complex lookups in a routing table and speeding traffic flows.

How OSPF cost is calculated?

The formula to calculate the cost is reference bandwidth divided by interface bandwidth. For example, in the case of Ethernet, it is 100 Mbps / 10 Mbps = 10. Note: If ip ospf cost cost is used on the interface, it overrides this formulated cost. For more information, refer to OSPF Cost.

How many address families can a single OSPFv3 instance support?

An OSPFv3 process can be configured to be either IPv4 or IPv6. The address-family command is used to determine which AF will run in the OSPFv3 process, and only one address family can be configured per instance.

Does OSPF support IPv6?

OSPFv3, which is described in RFC 5340, expands on OSPF version 2 to provide support for IPv6 routing prefixes and the larger size of IPv6 addresses. In OSPFv3, a routing process does not need to be explicitly created. Unlike OSPF version 2, multiple instances of OSPFv3 can be run on a link.

What is passive interface?

Passive-interface command is used in all routing protocols to disable sending updates out from a specific interface. In EIGRP the passive-interface command stops sending outgoing hello packets, hence the router can not form any neighbor relationship via the passive interface.

Is Link State a protocol?

IS-IS is a link-state routing protocol, operating by reliably flooding link state information throughout a network of routers. Each IS-IS router independently builds a database of the network's topology, aggregating the flooded network information.

How configure IPv6 OSPF?

Requirements

1. Complete the OSPF network strategy and planning for your IPv6 network.
2. Enable IPv6 unicast routing.
3. Enable IPv6 on the interface.
4. Configure the IP Security (IPsec) secure socket application program interface (API) on OSPF for IPv6 in order to enable authentication and encryption.

What is OSPF routing protocol?

Open Shortest Path First (OSPF) is a routing protocol for Internet Protocol (IP) networks. It uses a link state routing (LSR) algorithm and falls into the group of interior gateway protocols (IGPs), operating within a single autonomous system (AS). It is defined as OSPF Version 2 in RFC 2328 (1998) for IPv4.

What may have been the reasoning for removing the network command in OSPFv3?

2. What may have been the reasoning for removing the network command in OSPFv3? Removing the network statement helps prevent the IPv6 address type errors. Also, an IPv6 interface can have multiple IPv6 addresses assigned to it.

What is OSPF v3?

OSPFv3 is the Open Shortest Path First routing protocol for IPv6. It is similar to OSPFv2 in its concept of a link state database, intra- and inter-area, and AS external routes and virtual links. OSPF works with IPv4, and OSPFv3 works with IPv6. The following figure shows an OSPFv3 protocol for IPv6.

Which address does OSPFv3 use to form neighbor adjacencies and send LSAS?

Routers do not forward packets with link local address. The link local address gets a FE80::/10 prefix. The OSPFv3 uses Link-local address to form neighbor adjacency by sending and receiving the hello packet to the neighbor router.

How do I enable OSPF?

To enable OSPF on a Cisco router and advertise interfaces, the following tasks are required:

1. Use the command router ospf process ID to start OSPF.
2. Use the network command to enable the interfaces.
3. Identify area assignments.
4. (Optional) Assign the router ID.

What command will assist in verifying your OSPF configuration?

• As with other routing protocols, show ip protocols helps verify the global configuration of OSPF.
• The show ip ospf command is also useful to verify configuration.
• One of the most important commands used to verify and troubleshoot OSPF is the show ip ospf interface command.
