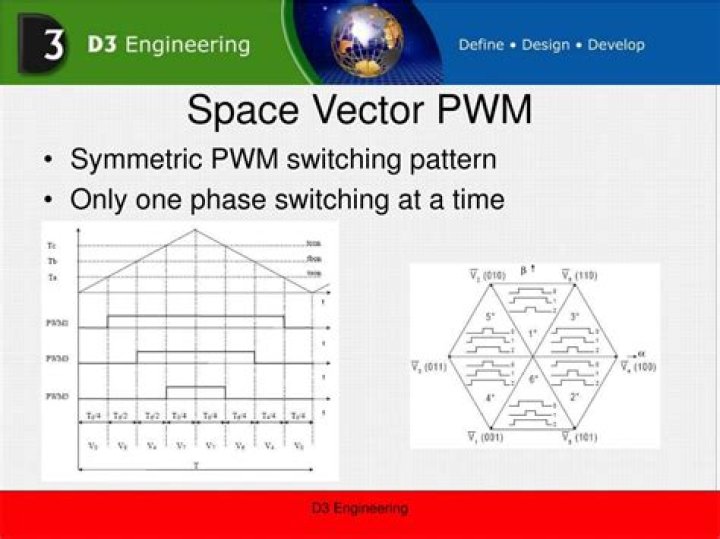

What is space vector PWM?

Space vector modulation (SVM) is an algorithm for the control of pulse width modulation (PWM). It is used for the creation of alternating current (AC) waveforms; most commonly to drive 3 phase AC powered motors at varying speeds from DC using multiple class-D amplifiers.

What is PWM technique in inverter?

Pulse Width Modulation or PWM technology is used in Inverters to give a steady output voltage of 230 or 110 V AC irrespective of the load. The use of MOSFETs in the output stage and the PWM technology makes these inverters ideal for all types of loads.

Which PWM control is used for inverters?

Hysteresis controller is used for Current source inverter and all the remaining PWM techniques are used for Voltage source inverter. Sinusoidal and Space Vector PWM techniques are most widely used.

What is SVM in inverter?

Space Vector Modulation (SVM) is an algorithm for the control of Pulse Width Modulation (PWM). SVM gives better harmonic response and higher efficiency compared to pulse width modulation techniques.

How does a 3 phase inverter work?

A three-phase inverter converts a DC input into a three-phase AC output. Its three arms are normally delayed by an angle of 120° so as to generate a three-phase AC supply. The pole voltages in a three phase inverter are equal to the pole voltages in single phase half bridge inverter.

Is SVM and Svpwm same?

SVM(space vector modulation) or SVPWM is also called Space Vector Pulse Width Modulation.

What is the advantage of using PWM technique in inverters discuss?

The main advantage of PWM is that power loss in the switching devices is very low. When a switch is off there is practically no current, and when it is on and power is being transferred to the load, there is almost no voltage drop across the switch.

What are the types of PWM?

The three conventional types of pulse width modulation are a) Trail Edge Modulation b) Lead Edge Modulation c) Pulse Center Two Edge Modulation.

Which PWM technique is best?

The bipolar PWM technique is inherently a 4-quadrant technique. As long as the average applied motor voltage is of the same polarity as the motor’s back-EMF voltage, and it is greater in amplitude than the back-EMF, then the motor will operate in motoring mode.

What are the advantages of PWM?

Advantages of pulse width modulation :

• Cheap to make.
• Low power consumption.
• Efficiency up to 90 %
• A signal can be separated very easily at demodulation and noise can be also separated easily.
• High power handling capacity.
• Can utilize very high frequency.
• Little heat whilst working.
• Noise interference is less.

What is the difference between SVM and Svpwm?

SVM control strategy is used to control the inverter voltage. In the conventional method they SVPWM is used to control the inverter. For the same system SVM controlled VSI is applied and the THD level is analysed. It is found to be less when compared to SPWM control method.

What are the two types of inverters?

There are 3 major types of inverters – sine wave (sometimes referred to as a “true” or “pure” sine wave), modified sine wave (actually a modified square wave), and square wave. A sine wave is what you get from your local utility company and (usually) from a generator.

What is space vector pulse width modulation (SVPWM)?

Space vector pulse width modulation (SVPWM) is a technique used in the final step of field oriented control (FOC) to determine the pulse-width modulated signals for the inverter switches in order to generate the desired 3-phase voltages to the motor.

What is the maximum output voltage from VSI using space vector modulation?

The maximum output voltage from VSI utilizing this scheme is limited to 0.5V dc (peak) or 0.353 rms. Space vector modulation improves dc bus utilization by 15.15%, further digital implementation of this scheme is easier [ 1][ 2]. The SVPWM is identified as an alternative method of determination of switching pulse width and their position.

What is pulse width modulation (PWM)?

A number of Pulse width modulation (PWM) scheme is used to obtain variable voltage and frequency supply from a power converter. The most widely used PWM schemes for three-phase voltage source inverter (VSI) are carrier-based sinusoidal PWM and space vector PWM (SVPWM).

What does SV-PWM stand for?

Space Vector Pulse Width Modulation (SV-PWM) is a modulation scheme used to apply a given voltage vector to a three-phased electric motor (permanent magnet or induction machine).
