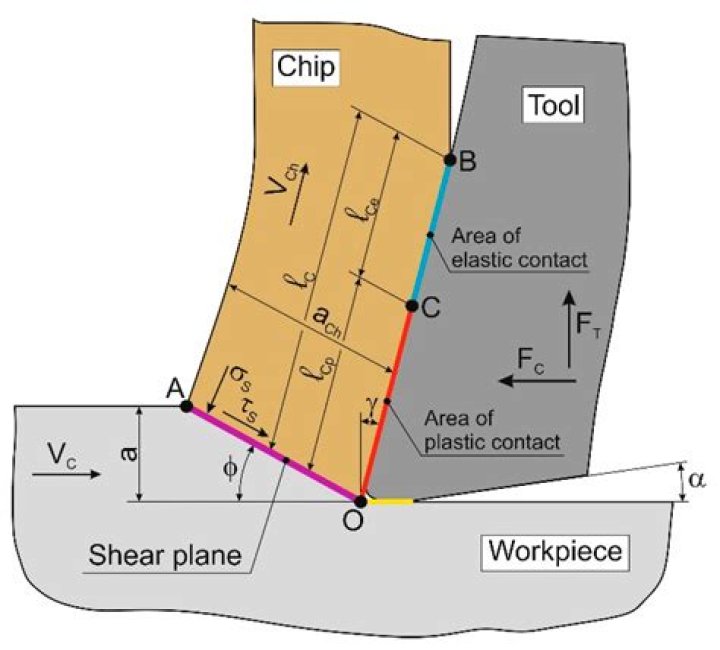

Orthogonal cutting uses a wedge-shaped tool in which the cutting edge is perpendicular to the direction of cutting speed. Shear plane: As the tool is forced into the material, the chip is formed by shear deformation along a plane called the shear plane, which is oriented at an angle f with the surface of the work.

.

Also asked, what is a shear angle?

l] (mechanical engineering) The angle made by the shear plane with the work surface.

Additionally, what is shear angle in orthogonal cutting? In orthogonal cutting, shear angle is the angle between (a) shear plane and the cutting velocity. (b) shear plane and the rake plane. (c) shear plane and the vertical direction. (d) shear plane and the direction of elongation of crystals in the chip.

In this manner, what is the significance of shear angle?

The shear angle is of fundamental importance in chip formation. The smaller the shear angle the larger the strain, the machining forces, and the power requirements. (11)) results in a lower shear plane and therefore more strain in forming the chip than Merchant's solution (Eqn.

What is a shear plane?

Definition of shear plane. : a plane or other surface along which rocks are ruptured by compressive stress.

Related Question Answers

What is the formula for shear strain?

A normal strain is perpendicular to the face of an element, and a shear strain is parallel to it. These definitions are consistent with those of normal stress and shear stress.

Shear strain
SI unit	1, or radian
Derivations from other quantities	γ = τG

What is the angle of twist?

Angle of twist: For a shaft under torsional loading, the angle through which fixed end of a shaft rotates with respect to the free end is called the angle of twist. As the torque is increased, the outer region of the shaft behaves like a plastic material while the inner core is still linear elastic.

What is the relief angle?

relief angle in Mechanical Engineering The relief angle is the angle between a cutting tool and the workpiece it has just cut. The relief angle on a machine tool is the angle that the edge of the tool nearest the workpiece makes with the workpiece.

What is clearance angle?

clearance angle. [′klir·?ns ‚aŋ·g?l] (mechanical engineering) The angle between a plane containing the end surface of a cutting tool and a plane passing through the cutting edge in the direction of cutting motion.

What is back rake angle?

Back rake angle is the angle between the face of the single point cutting tool and a line parallel with base of the tool measured in a perpendicular plane through the side cutting edge.

What is cutting ratio?

cutting ratio. [′k?d·iŋ ‚rā·shō] (engineering) As applied to metal cutting, the ratio of depth of cut to chip thickness for a given shear angle.

What is angle of twist and angle of shear?

Answer: The angle of shear can be defined as the angle of the deformation that occurs on the sides when the object is exerted upon by shearing stress or deformation force. The angle of twist can be defined as the angle through which the rotating machine element rotates or twists with respect to its free end.

What is the merchant equation?

The Merchant equation states that the shear plane angle increases when rake angle is increased and friction angle is decreased.

What is friction angle?

angle of internal friction (friction angle) A measure of the ability of a unit of rock or soil to withstand a shear stress. It is the angle (φ), measured between the normal force (N) and resultant force (R), that is attained when failure just occurs in response to a shearing stress (S).

What is the effect of chip thickness ratio on shear plane angle?

It is because the chip flows upward at a slower rate than the velocity of the cut. The velocity of the chip flow is directly effected by the shear plane angle . The smaller this angle slower will be the chip flow velocity and, therefore, large will be the thickness of the chip.

What is Tool nomenclature?

Cutting – tool nomenclature means systematic naming of the various parts and angles of a cutting tool. these are : shank, face, flank, heel, nose, base, back rake, side rake, side clearance, end cutting edge, wide cutting edge, and lip angle. These elements define the shape of a tool.

What are the principal alloying ingredients in high speed steel?

17.8 What are the principal alloying ingredients in high-speed steel? Answer. Principal alloying ingredients in HSS are (1) either tungsten or a combination of tungsten and molybdenum, (2) chromium, (3) vanadium, and (4) carbon. Some grades of HSS also contain cobalt.

What is the chip thickness ratio?

Chip Thickness Ratio. Chip Thickness ratio is defined as the thickness of metal before cutting to the thickness of metal after cutting.

Why is metal cutting shear strain such an important parameter?

Metal cutting shear stress an important parameter because A: In metal cutting, shear stress is a materialconstant. This means that it is not sensitive to changes in cutting parameters or cutting process variations. The cutting force increased feed and depth cut because the volume is greater with a greater depth of cut.

What is feed force in metal cutting?

(a) In the direction of feed of the tool (F_d): It is the horizontal components of the cutting force. It is also called Feed Force (F_d). ADVERTISEMENTS: (b) In the direction perpendicular to feed direction (F_r): It is in the radial direction, i.e., in the direction perpendicular to the generated surface.

What does machinability mean?

Machinability is the ease with which a metal can be cut (machined) permitting the removal of the material with a satisfactory finish at low cost.

What is Chip velocity?

Chip velocity is a crucial parameter in metal cutting. The continuous variation of chip velocity in primary shear zone can not be obtained from conventional shear plane model. Therefore a general streamline model was used to investigate the distribution of chip velocity field in metal cutting.

How do we calculate cutting force?

Blade Cutting Force Calculation During blanking, you can calculate the cutting force of this punch using the equation F = l × t × s for the cutting force F, length of the sheet to be cut l in millimeters, sheet thickness t in millimeters and shear strength s in N/mm².

What is the mechanism of chip formation?

Regardless of the tool being used or the metal being cut, the chip forming process occurs by a mechanism called plastic deformation. This deformation can be visualized as shearing. That is when a metal is subjected to a load exceeding its elastic limit.
