Scour valves are located at low points or between valved sections of the pipeline. Their function is to allow periodic flushing of the lines to remove sediment and to allow the line to be drained for maintenance and repair work.

.

Regarding this, what is sluice valve?

Sluice Valve functions strictly to either start or stop the flow. Sluice gate, knife gate, and slide gate are used interchangeably in the water and wastewater control industry. They are designed to control the flow of fluid through a pipe it works by raising or lowering a wedge that blocks flow.

Beside above, what is the use of air valve? Air valves are hydromechanical devices designed to automatically release air and wastewater gases or admit air during the filling, draining or operation of liquid piping systems for water and wastewater services.

Furthermore, what is the difference between sluice valve and gate valve?

It has no A gate valve and a sluice valve both are linear motion valves and are used to start or stop the flow of the fluid in piping. The difference between a gate valve and a sluice valve is that a gate valve is used for closed pipelines on the other hand sluice valve is used for open systems such as dams.

How many types of valves are there?

Learn about 9 Different Types of Valves used in Piping such as Gate Valve, Globe Valve, Check Valve, Plug valve, Ball Valve, Butterfly Valve, Needle Valve, Pinch Valve and Pressure Relief Valve.

Related Question Answers

What is the function of sluice valve?

Sluice Valve and/or Gate Valve functions strictly to either start or stop the flow. Gate valves are used for water supply system and sluice valves are used for slurries. Gate valve is opened by lifting gate/wedge from the flow of water, allowing all water to pass without resistance.

Where is the gate valve located?

It should be under the water heater or at the top of it. It could be shaped like a ring, called a gate valve, or it could be a lever type, called a ball valve. If it's a gate valve, turn the valve right to shut the water off.

What is the symbol for a gate valve?

The “bow tie” symbol is the piping symbol for a gate valve. In symbol #1 we have two vertical lines, one of which is part of the “bow tie” symbol, on each end of the valve. This tells us that the valve is installed using a flange.

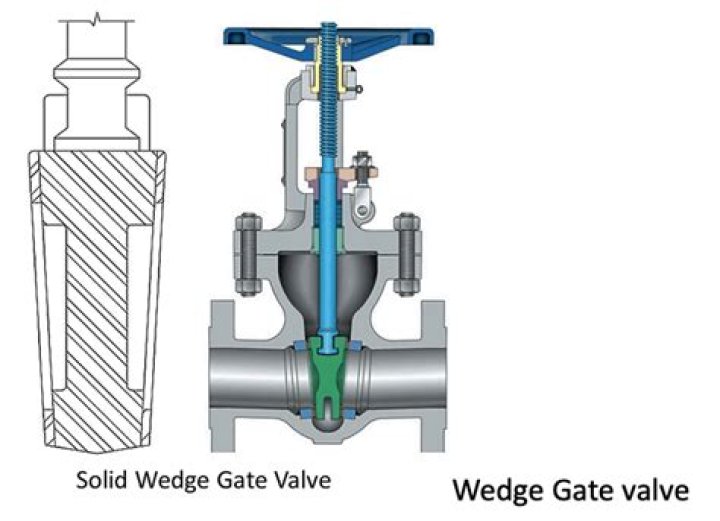

What are the parts of a gate valve?

Gate valves consists of three main parts: body, bonnet, and trim. The body is generally connected to other equipment by means of flanged, screwed or welded connections. The bonnet, which containing the moving parts, is attached to the body, usually with bolts, to permit maintenance.

What is a PSV valve?

A Pressure Safety Valve (PSV) is a type of valve used to quickly release gasses from equipment in order to avoid overpressurization and potential process safety incidents. PSVs are activated automatically when pressure exceeds prescribed pressure limits in order to return equipment pressure to a safe operating level.

What is the best type of water shut off valve?

Ball valves are perhaps the most reliable type of valve and are commonly used for main water shutoffs and for branch line shutoffs. Like gate valves, a ball valve is designed as an all-or-nothing valve—they should be either fully open to allow full flow, or fully closed to stop all water flow.

Are all ball valves quarter turn?

Ball valves are used for both on/off and throttling service. Ball valves are similar to plug valves but use a ball-shaped seating element (Figure 4.56). They are quick-opening and require only a quarter-turn to open or close.

What is a wash out valve?

Definition of washout valve. Valve in a pipeline or a dam that can be opened occasionally to clear out sediment.

What are valves used for?

A valve is a device that regulates, directs or controls the flow of a fluid (gases, liquids, fluidized solids, or slurries) by opening, closing, or partially obstructing various passageways.

When would you use a ball valve?

Ball valves are also ideal in situations where an operator needs to turn things on and off, without losing pressure. They seal very well, as the ball blocks flow, and they are easy to operate, only requiring a simple turn of the valve handle, which can then be visually confirmed.

Can a butterfly valve be used for isolation?

Butterfly valves find use only in low pressure and low temperature flow systems. Lightweight and short face-to-face dimension, they can be used both for isolation and regulating the flow of material using their characteristic quarter turn rotating action.

What is Valve and types?

Valves are mechanical devices that controls the flow and pressure within a system or process. Different types of valves are available: gate, globe, plug, ball, butterfly, check, diaphragm, pinch, pressure relief, control valves etc.

How many types of gate valves are there?

two

What is the difference between globe valve and butterfly valve?

Globe valve: The stem opening or closing stroke of this kind of valve is relatively short, and it has a very reliable cut-off function. Butterfly valve: A valve that opens, closes or regulates the flow of medium by reciprocating about 90 degrees with disc-type opening and closing parts.

What is drain valve?

drain valve. [′drān ‚valv] (chemical engineering) A valve used to drain off material that has separated from a fluid or gas stream, or one used to empty a process line, vessel, or storage tank.

How do sluice gates work?

A sluice (/slus/ SLOOS; from the Dutch sluis) is a water channel controlled at its head by a gate. Sluice gates commonly control water levels and flow rates in rivers and canals. They are also used in wastewater treatment plants and to recover minerals in mining operations, and in watermills.

How do air valves work?

Air release valves are installed at the highest points in a pipeline where air naturally collects. Air bubbles enter the valve and displace the liquid inside, lowering the liquid level. This motion pulls the seat away from the orifice, triggering the valve to open and vent the accumulated air into the atmosphere.

How much is an idle air control valve?

When the engine is cold, the IAC valve helps to get it started. If it breaks down on you or starts to malfunction, then you are going to have to get it replaced. The cost of that, on average, will be between $115 and $500. You will likely pay about $70 for labor and anywhere from $45 to just over $400 for parts.

How do you remove air from pipeline?

How to Get Rid of Air in Water Pipes

1. Shut off the main water valve by turning it as far clockwise as it will go.
2. Open all faucets in your home.
3. Turn the main water supply back on once no more water is coming through any faucets.
4. Turn the faucets off one by one once there is a steady flow of water coming from all of them.
