Non Concurrent, Non Parallel Systems. It is defined as the forces which lies in the line of activity but do not intersect or forms a parallel at a common point. The forces are the general system of forces. The resultant of non-concurrent, non-parallel systems is obtained by the principles of equilibrium.

.

Just so, what is a non concurrent force?

Non-concurrent force is the sum of forces which has a non zero resultant. A couple is an example of a non-concurrent force because its line of action does not intersect at one point. In mechanics, a couple is a system of forces with a resultant (net, or sum) moment but no resultant force.

One may also ask, what is the difference between concurrent and non concurrent forces? Non-concurrent forces are two or more forces whose magnitudes are equal but act in opposite directions with a common line of action. The forces you apply with both hands when turning either left or right cause it to turn. Both hands are involved in turning the wheel; one hand pushes while the other pulls.

Similarly, you may ask, what is meant by parallel forces?

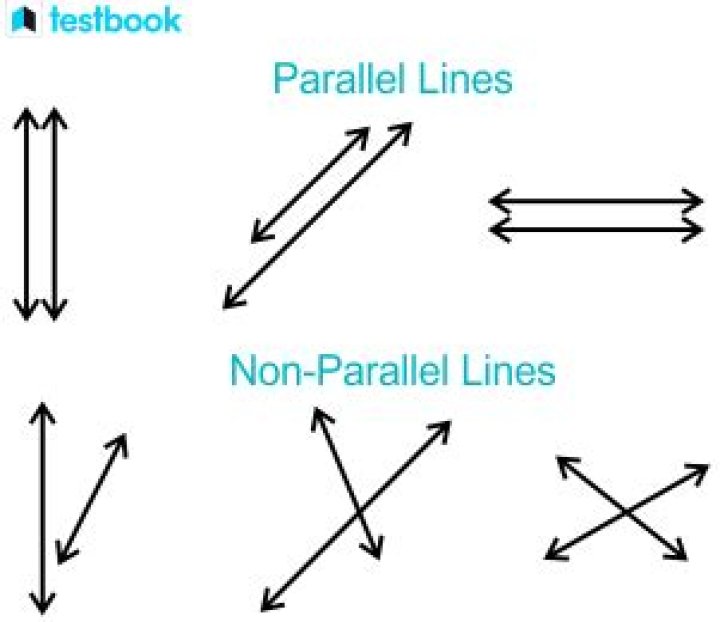

Parallel forces lie in the same plane and have lines of action that never intersect each other. Two forces that are parallel can either be in the same direction or in opposite directions.

What is the classification of force?

Contact forces can be classified according to six types: tensional, spring, normal reaction, friction, air friction, and weight. Noncontact forces: Forces that take place when two objects do not touch. These forces can be classified according to three types: gravitational, electrical, and magnetic.

Related Question Answers

What are collinear forces?

Collinear forces are forces which have a common line of action, i.e. the line of action of the forces lie along a single straight line. Examples: two people standing at the opposite ends of a rope and pulling on it.

What is moment of a force?

Noun. moment of force (plural moments of force) (physics) The turning effect of a force applied to a rotational system at a distance from the axis of rotation. The moment is equal to the magnitude of the force multiplied by the perpendicular distance between its line of action and the axis of rotation.

What is force equilibrium?

A very basic concept when dealing with forces is the idea of equilibrium or balance. If the size and direction of the forces acting on an object are exactly balanced, then there is no net force acting on the object and the object is said to be in equilibrium.

What does non concurrent mean?

Definition of nonconcurrent. : operating or occurring at different times : not concurrent nonconcurrent prison sentences.

What are non concurrent lines?

Two or more lines are said to be concurrent if they pass through a common point i.e., they intersect at a point. If two or more lines do not intersect at a common point, then they are non concurrent.

What is a coplanar force system?

Coplanar force system refers to the number of forces which remain in same plane. It is also stated as the number of forces in a system which remains in single plane. This force system can be concurrent, parallel and non-concurrent and non-parallel.

What are like and unlike parallel forces?

Forces which are parallel and acting a similar way are called like parallel forces. Like Parallel forces are the forces that are parallel to each other and have the same direction. Unlike parallel forces are the forces that parallel yet have directions inverse to each other.

What is a perpendicular force?

A force at 90 degrees to another force, or at 90 degrees to the direction of motion of an object. This, if the situation continues, is an orbit. Also, the motion of electrons in the same direction through two parallel wires will cause a perpendicular magnetic force that tends to push the wires away from each other.

What is meant by resultant force?

A resultant force is the single force and associated torque obtained by combining a system of forces and torques acting on a rigid body. The defining feature of a resultant force, or resultant force-torque, is that it has the same effect on the rigid body as the original system of forces.

What is general force system?

Objectives: In this chapter general systems of forces are considered, i.e., forces whose lines of action do not intersect at a point. Students should learn how coplanar or spatial systems of forces can be reduced and under which conditions they are in equilibrium.

What is parallel forces in mechanics?

In mechanical engineering, a parallel force system is a situation in which two forces of equal magnitude act in the same direction within the same plane, with the counter force in the middle.

Is normal force constant?

In an elevator either stationary or moving at constant velocity, the normal force on the person's feet balances the person's weight. In an elevator that is accelerating downward, the normal force is less than the person's ground weight and so a passenger's perceived weight decreases.

What is force composition?

Composition of force. Composition force is the method in which we are finding out the resultant force of a number of forces acting simultaneously on the body. on the other hand, also we can say that finding out the resultant force of the given force it is called composition force or compounding of force.

What do you mean by free body diagram?

Free-body diagrams are diagrams used to show the relative magnitude and direction of all forces acting upon an object in a given situation. A free-body diagram is a special example of the vector diagrams that were discussed in an earlier unit. These diagrams will be used throughout our study of physics.

What is non coplanar concurrent forces?

Non-coplanar non-concurrent forces are those forces which. A. Meet at one point, but their lines of action do not lie on the same plane. Do not meet at one point and their lines of action do not lie on the same plane. Do not meet at one point but their lines of action lie on the same plane.

What are the conditions of equilibrium for a non concurrent coplanar forces acting on a body?

There are three equilibrium conditions that can be used for non-concurrent, non-parallel force system. The sum of all forces in the x-direction or horizontal is zero. The sum of all forces in the y-direction or vertical is zero. The sum of moment at any point O is zero.

How will you obtain the resultant of a coplanar Non Concurrent force system?

Resultant of Coplanar Non-Concurrent Forces: Obtained by adding two forces at a time and then combining their sums. The three forces Fl, F2 and F3 shown in Figure 1.26 may be combined by first adding any two forces such as F2 and F3.

What are the conditions for equilibrium in a concurrent system of forces?

Conditions of Static Equilibrium of Concurrent Forces The sum of all forces in the x-direction or horizontal is zero. The sum of all forces in the y-direction or vertical is zero. Two forces are in equilibrium if they are equal and oppositely directed. Three coplanar forces in equilibrium are concurrent.

What is law of parallelogram of forces?

The law of parallelogram of forces states that if two vectors acting on a particle at the same time be represented in magnitude and direction by the two adjacent sides of a parallelogram drawn from a point their resultant vector is represented in magnitude and direction by the diagonal of the parallelogram drawn from .
