What is directive assembler?
Rachel Young What is directive assembler?

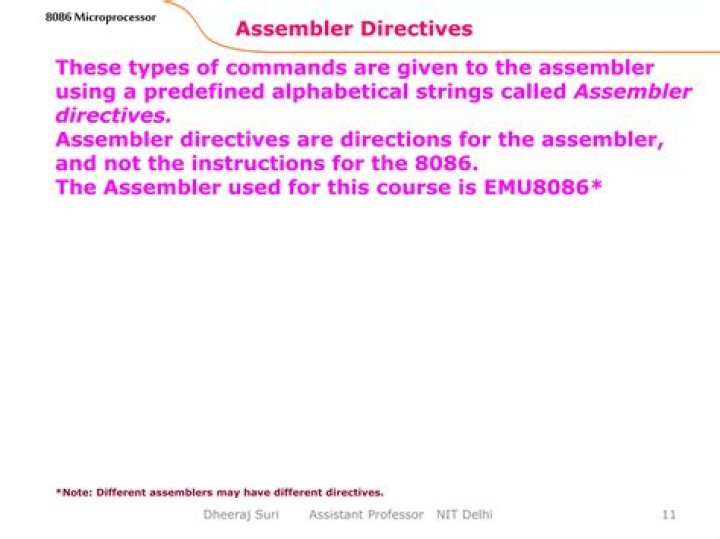

Assembler directives are directions to the assembler to take some action or change a setting. text directive tells the assembler that the information that follows is program text (assembly instructions), and the translated machine code is to be written to the text segment of memory.
What are assembler directives examples?
Examples of common assembler directives are ORG (origin), EQU (equate), and DS. B (define space for a byte). Directives are NOT part of the Motorola assembly language machine instructions, such as ‘ldaa’ or ‘movb’. Machine instructions generate machine code, assembler directives do not.
What is purpose of assembler directive?
An assembler directive is a message to the assembler that tells the assembler something it needs to know in order to carry out the assembly process; for example, an assemble directive tell the assembler where a program is to be located in memory.
What are the types of assembler directives?
5 Assembler Directives
- Assemble code and data into specified sections.
- Reserve space in memory for uninitialized variables.
- Control the appearance of listings.
- Initialize memory.
- Assemble conditional blocks.
- Define global variables.
- Specify libraries from which the assembler can obtain macros.
What is DB assembly?
In assembly language, we use “db” (data byte) to allocate some space, and fill it with a string. You can actually pull out the bytes of the string directly from memory like below, for example to print their ASCII values as a number, like 0x4E for ‘N’.
What are assembler directives in SIC?
Conventions in SIC and SIC/XE: Lines starting with ‘. ‘ are comments. Fields in a statement: Label (optional), Opcode, Operands (if needed) and Comment (optional). Assembler directives (or pseudo opcodes): START, END, BYTE, WORD, RESB, RESW, BASE and NOBASE.
What is the bit mask of FFC?
8.Define bit mask The relocation bits are gathered together following the length indicator in each text record and which is called as bit mask. For e.g. the bit mask FFC(1 11111111100) specifies that the first 10 words of object code are to be modified during relocation.
How many types of assemblers are there?
two types
There are two types of assemblers based on how many passes through the source are needed (how many times the assembler reads the source) to produce the object file. One-pass assemblers go through the source code once.
What does .model small mean?
model small tells the assembler that you intend to use the small memory model – one code segment, one data segment and one stack segment – and the values of the segment registers are never changed. It has the following effects: You are allowed to write the instruction retn (return from a near subroutine) as ret .
What are the advanced assembler directives?
Assembler directives are instructions that direct the assembler to do something. Assigns a value to a symbol (same as =) This is used to set the program or register address during assembly. For example, ORG 0100h tells the assembler to assemble all subsequent code starting at address 0100h.
What is Lea Assembly?
lea — Load effective address. The lea instruction places the address specified by its first operand into the register specified by its second operand. Note, the contents of the memory location are not loaded, only the effective address is computed and placed into the register.
What is DD assembly?
DD = define double word size (32 bits) variables. DQ = define quad word size (64 bits) variables.
