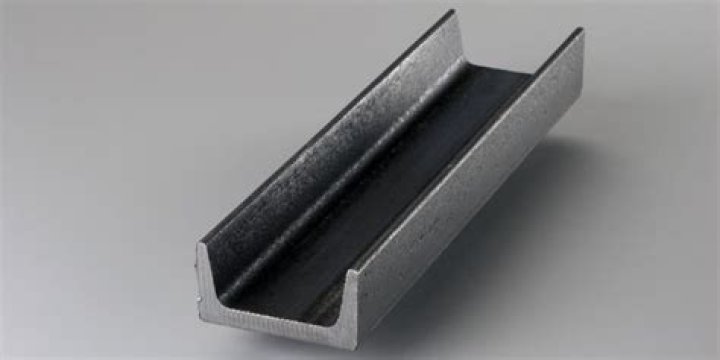

What is C channel steel?
Isabella Bartlett .
Accordingly, what is MC channel steel?
MC-Channels is the short form for a further group of channel sections. They are produced with parallel flanges with tolerances according to ASTM A 484, the laser fused execution has additionally the product standard defined by ASTM A1069.
Subsequently, question is, is C Channel stronger than angle iron? 8 Ways That Steel Channel is Often Used. It offers improved rigidity over flat steel stock, and is slightly stronger when used lengthwise than the equivalent thickness of angle iron.
Regarding this, what does C channel weigh?
C channels are designated by the letter C followed by the nominal depth in inches and the weight in pounds per foot. Thus C 7 × 12.25 designates an American Standard C Channel with a depth of 7 inches and a nominal weight of 12.25 pounds per foot.
How is steel channel measured?
Steel Channel is a Hot Rolled product (typically grade ASTM A36). When looking at a cross section it has a vertical web with horizontal top and bottom flanges. They are measured very similarly to universal beams: the depth, the flange width and the kilograms per metre.
Related Question AnswersWhat is C channel used for?
The structural channel, also known as a C-channel or Parallel Flange Channel (PFC), is a type of (usually structural steel) beam, used primarily in building construction and civil engineering.Which is stronger I beam or C channel?
You would need to provide specific sizes for the I beam vs. Channel question but in general a channel is one half of an I beam that is split down the vertical rib so yes, the I beam is stronger. But it also depends on the weight per foot, the flange width, and the thickness of the flanges.What does w12x26 mean?
W12x26, for example means that d (depth) is approximately 12 inches and the beam weighs 12 pounds per lineal foot.What does W mean in steel beams?
The wide flange I beam (W shape) is a structural steel shape with I (or H) form. The designation of the wide flange I beam gives information about the width and weight per unit length. For example W12 X 96 means 12 inches depth and 96 pounds per foot weight per unit length. Depth values are generally approximate.How do you calculate the weight of steel channel?
Channels manufactured by JINDAL are represented by Web Height, Flange Width & Section Weight.Please Select an Metal Type.
| M.S.Channel / ismc channel weight calculation formula | ||
|---|---|---|
| Size | Weight in Kgs. Per Feet | Weight in Kgs. per Mtr. |
| ISMC 75 x 40 x 4.8 | 2.176 | 7.14 |
| ISMC 100 x 50 x 5 | 2.914 | 9.56 |
| ISMC 125 x 65 x 5.3 | 3.993 | 13.10 |
What kind of steel is angle iron made of?
1: All steel is made from iron Other elements such as chromium and nickel are added to give the steel additional properties such as corrosion resistance and durability against high temperatures.What does 6 inch channel weigh?
Structural Steel Channels| Item # | B-Flange Width | Weight per Ft. |
|---|---|---|
| Structural Channels-5x6.7# | 5 in | 6.70 lb |
| Structural Channels-5x9# | 5 in | 9.0 lb |
| Structural Channels-6x8.2# | 6 in | 8.20 lb |
| Structural Channels-6x10.5# | 6 in | 10.50 lb |
What is U channel steel?
A36 Steel Channel is a hot rolled, mild steel structural C shape with inside radius corners that is ideal for all structural applications, general fabrication, manufacturing and repairs. Steel Channel is widely used in industrial maintenance, agricultural implements, transportation equipment, truck beds, trailers, etc.What is strut channel used for?
Strut channel is used to mount, brace, support, and connect lightweight structural loads in building construction. These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems.What are the sizes of steel?
Comparison List of Deformed Steel Bar Size and Weight:| SIZE (Diameter) | THEORETICAL WEIGHT KG/M |
|---|---|
| 6mm | 0.222 |
| 8mm | 0.395 |
| 10mm | 0.62 |
| 12mm | 0.89 |
How heavy is angle iron?
STRUCTURALS| Angles | |
|---|---|
| Thickness | Weight Per Foot |
| 5 x 3 x 5/16 | 8.2 |
| 5 x 3 x 3/8 | 9.8 |
| * 5 x 3 x 1/2 | 12.8 |
