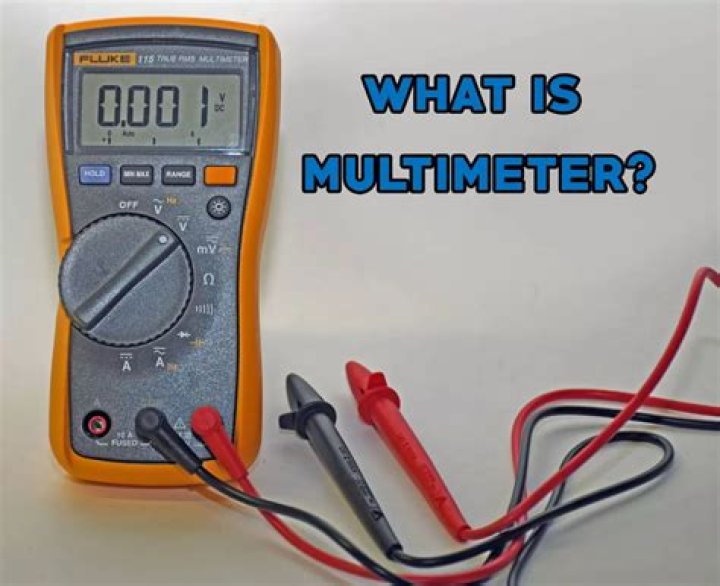

A digital multimeter is a test tool used to measure two or more electrical values—principally voltage (volts), current (amps) and resistance (ohms). It is a standard diagnostic tool for technicians in the electrical/electronic industries.

.

In this regard, what is a multimeter used for?

A multimeter or a multitester, also known as a VOM (volt-ohm-milliammeter), is an electronic measuring instrument that combines several measurement functions in one unit. A typical multimeter can measure voltage, current, and resistance.

One may also ask, how do you check a multimeter for accuracy? Set your multimeter to the lowest setting for resistance (the word "ohms" or an "Ω" symbol can also denote resistance). Touch the red probe to the black probe. Check the display to make sure that it reads "0," as there should not be any resistance between the two probes. Find a resistor of known value.

Additionally, what do the symbols mean on a multimeter?

When referring to the units volts, amps, and ohms, we use the symbols V, A, and Ω, as explained above. So, "V" is used for both voltage and volts, but current and resistance have different symbols for their variables and units.

How do I turn on a multimeter?

To begin, make sure no current is running through the circuit or component you want to test. Switch it off, unplug it from the wall, and remove any batteries. Plug the black probe into the COM port on your multimeter. Plug the red probe into the VΩmA port.

Related Question Answers

How do multimeters work?

How Multimeters Work. A multimeter is a tool designed to troubleshoot electrical and electronic circuits and is used for checking voltages to confirm proper operating levels. An ammeter measures current, an ohmmeter allows you to determine resistance, and a voltmeter is used to measure voltage between two points.

What can a multimeter test?

A multimeter or a multitester, also known as a VOM (volt-ohm-milliammeter), is an electronic measuring instrument that combines several measurement functions in one unit. A typical multimeter can measure voltage, current, and resistance. Analog multimeters use a microammeter with a moving pointer to display readings.

What should I look for in a multimeter?

From a computer standpoint, the most important features to look for in a multimeter are:

• The ability to select a range of voltages.
• The ability to measure AC and DC voltages.
• The ability to measure ohms.

How many types of multimeters are there?

Three Types of Digital Multimeters. Your typical array of multimeter options at any hardware store, whether in-person or online, consists of three basic digital multimeter types. The reason they are broken into three is due to the range of functionality these devices provide.

How do you check for a short circuit with a multimeter?

How to Find a Short With a Multimeter

1. Turn the multimeter settings knob to "continuity." The continuity setting is indicated by a small microphone symbol.
2. Place the negative multimeter probe, the black one, on one end of the wire you want to test for continuity.
3. Look at the monitor on the multimeter.

Can a multimeter be used as a voltmeter?

Multimeter. The multimeter can record voltage, like a voltmeter, but it is also capable of measuring ohms and amperes, the units of resistance and current, respectively. The price increases with the number of things that it can measure and the range of current and voltages with which it can work.

How do you use a digital multimeter to test a battery?

To start, let's measure voltage on a AA battery: Plug the black probe into COM and the red probe into mAVΩ. Set the multimeter to "2V" in the DC (direct current) range. Almost all portable electronics use direct current), not alternating current.

What does OL mean on a multimeter?

open loop

How do you test an open circuit with a multimeter?

Maintain the first test probe at the hot wire terminal of the circuit. Remove the second probe from the neutral terminal then place it on the ground terminal for the circuit. Once more the multimeter will read "OL" or infinity if the circuit is open or zero if the circuit is functioning.

What does 200m mean on a multimeter?

Power electronics. 3 points · 5 years ago. 200m just means 200 milli, or 0.2.

What symbol is AC on multimeter?

~ (squiggly line): You might see a squiggly line next to or above a V or A on the front of your multimeter, in addition to metric prefixes. This stands for alternating current (AC).

What is the symbol of switch?

Electronic Switch Symbols

Name	Description
SPST Toggle Switch	Disconnects current when open
SPDT Toggle Switch	Selects between two connections
Pushbutton Switch (N.O)	Momentary switch - normally open
Pushbutton Switch (N.C)	Momentary switch - normally closed

What does mV mean on a multimeter?

Button 11: AC Millivolts. Now, we're back to serious multimeter symbols. This one is an “mV” with a squiggly line on top of the V. It is used to test smaller circuits using the AC Voltage setting that are especially low.

Is a battery AC or DC?

Batteries are DC; they generate voltage in only one direction, and they have a polarity of positive and negative. Household AC voltage is created by spinning turbines. Halfway through the spin, the voltage is going one direction, and as it completes the spin, the voltage changes to the opposite direction.

Is a car AC or DC?

AC/DC. There are two types of electricity, alternating current (AC) and direct current (DC). Most automotive components require this DC charge to work properly, but it is limited because batteries will eventually discharge completely, with no remaining power to give. To address this problem, cars also have alternators.

What does the range button do on a multimeter?

It is compatible with all measurements, but should only be used with black test leads. Button 9: Range Button. This button will usually be found across the top of your multimeter, and has a “Lo/Hi” symbol above it. This will help you “click through” different meter ranges.

What are the symbols of a circuit?

Here is an overview of the most used symbols in circuit diagrams.

• Battery. The symbol for a battery is shown below.
• Variable resistor (Potentiometer) The variable resistor or potentiometer is drawn in several different ways.
• Diode.
• Inductor.
• Integrated Circuit.
• Logic Gates.
• Operational Amplifier.
• Switch.

Is a house AC or DC?

Many devices in your house need DC. When you plug things into the outlet in your house, you don't get DC. Household outlets are AC - Alternating Current. This current has a frequency of 60 Hz and would look something like this (if you plotted current as a function of time).
