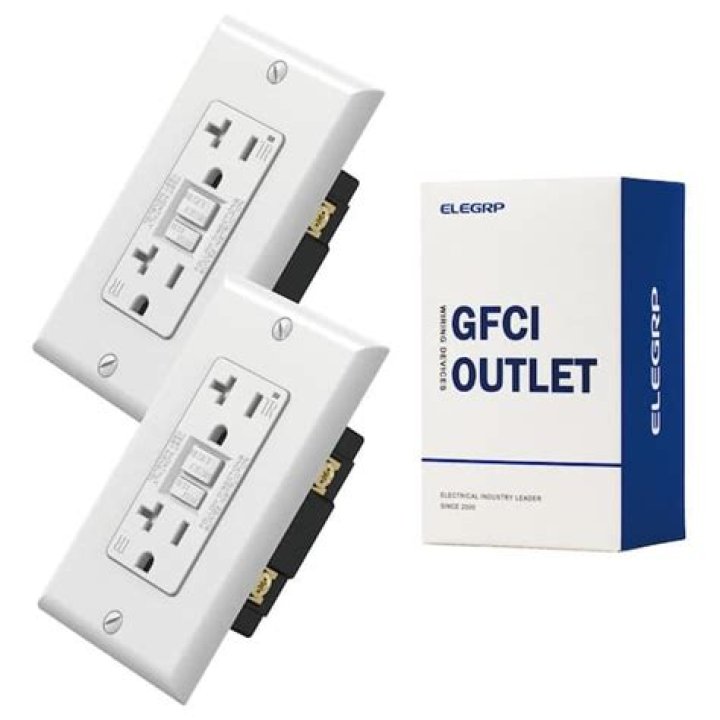

What is a GFCI duplex outlet?
Rachel Young general
A GFCI (ground fault circuit interrupter) is a special type of outlet that detects dangerous ground faults and immediately turns off the power to stop shocks. We'll show you how to replace a standard duplex receptacle with a GFCI and wire it to protect other outlets.
.
Keeping this in consideration, what is a GFCI receptacle?
A ground fault circuit interrupter (GFCI), or Residual Current Device (RCD) is a type of circuit breaker which shuts off electric power when it senses an imbalance between the outgoing and incoming current. A circuit breaker protects the house wires and receptacles from overheating and possible fire.
Furthermore, what is a GFCI outlet and where is one needed? Code requires that GFCI outlets be used in any location that is six feet or closer to a plumbing fixture or moisture source. This includes multiple areas of a typical home, such as: Kitchens. Bathrooms.
Simply so, what is the difference between a GFI and a GFCI?
GFI is an ground fault interrupting outlet. GFCI is a ground fault circuit interrupter. A typical GFI outlet is the first in a string of outlets, and is the one used to provide GFCI protection to the circuit (i.e. everything connected after that point.) GFCI is a ground fault circuit interrupter.
Can you have 2 GFCI outlets on the same circuit?
You only need 1 GFCI outlet per circuit (assuming it's at the beginning of the line and the rest of the outlets are loads). They are correctly wired in parallel - if they were in series, you wouldn't get the correct voltage at the other outlets when there is any type of load present. It is possible.
Related Question AnswersWhat does GFI stand for?
A GFI, or GFCI – Ground Fault Circuit Interrupter device protects us from receiving electric shocks from faults in the electrical devices we use in our home. It works by comparing the input current on the hot side to the output current on the neutral side.Do all outlets in bathroom need to be GFCI?
Bathrooms: All receptacles must be GFCI protected. Garages and accessory buildings: GFCI protection must be included on all receptacles in structures that have a floor located at or below grade level, not intended as habitable rooms and limited to storage areas, work areas, and areas of similar use.Do all outlets in a bathroom need to be GFCI?
The National Electrical Code, or NEC, states that the following areas of homes are required to have GFCI outlets: All 15 amp, 20 amp and 125 volt outlets in bathrooms.How much does it cost to install a GFCI outlet?
Average Cost When you're looking into the cost to install a GFCI outlet, you can expect to pay $95 - $155, typically.How do you troubleshoot a GFCI?
Go to your circuit breaker and switch off the circuit for the GFCI outlet that is having problems. Then unscrew your ground fault circuit interrupter outlet and pull out the outlet from the box. Take out the black and white wires from your GFCI outlet.What happens when a GFCI won t reset?
The most likely reason for a Ground Fault Circuit Interrupter (GFCI) failing to reset is that there is a ground fault in the circuit. Until the ground fault is identified and corrected, the GFCI will immediately trip again every time it is reset.How do you tell if an outlet is GFCI protected?
So the only reliable way to check an older GFCI is to use a circuit tester that has its own GFCI test button (sold at home centers and hardware stores). Plug in the tester and push its test button. If the power goes off, the GFCI is working. Press the reset button to restore power.Can I put a GFCI anywhere?
The National Electrical Code (NEC) requires GFCI outlets in all wet or damp locations such as kitchens, bathrooms, laundry rooms, basements, garages and workshops. This guide will teach you how to safely install a GFCI (ground fault circuit interrupter) outlet. Safety: Turn off the power before beginning your project.Does outlet under sink need to be GFCI?
There are no requirements in National Electrical Code (NEC) that a residential disposal must be GFCI protected. It also requires GFCI protection for receptacles within 6' of a sink, but only sinks not in a kitchen. The 2014 edition added 210.8(D), which requires dwelling unit dishwashers to be GFCI protected.Do I need GFCI outlets if I have a GFCI breaker?
GFCI protection is a required safety measure for virtually all outlets close to water or in outdoor areas. You can install a GFCI receptacle installed at an individual power outlet, or you can use a GFCI breaker in the electrical panel to have GFCI protection for all outlets powered by that breaker.Can I replace all outlets with GFCI?
A GFCI (ground fault circuit interrupter) is a special type of outlet that detects dangerous ground faults and immediately turns off the power to stop shocks. You can replace almost any electrical outlet with a GFCI outlet. Correctly wired GFCIs will also protect other outlets on the same circuit.Will a GFCI trip before a breaker?
Lifer. A GFCI will only trip in case of a "ground fault." If there's a difference in the currents between the lines, it trips. It will not trip when your circuit draws too much power and trips the breaker.Where do I need a GFCI outlet?
Per 210.8, you must install GFCI protection for all 15A and 20A, 125V receptacles located in bathrooms, rooftops, and kitchens in commercial/industrial facilities. However, GFCI protection is not required for receptacles installed outside a commercial or industrial occupancy.When would you use a GFCI breaker?
When to Install a GFCI Breaker:- When the majority or all of the outlets on the circuit require GFCI protection.
- When outlets that require GFCI protection don't have the space for the bigger GFCI receptacles.
- For specialty uses, like for heated swimming pools.
