A square electrical box, also known as a “double-gang box,” houses two devices. They’ll have a combination outlet/switch or a pair of outlets/switches inside. The round or octagonal box houses lightweight fixtures or safety devices in the ceiling. These are used for lights or smoke and carbon monoxide alarms.

What is the difference between a one gang and a two gang box?

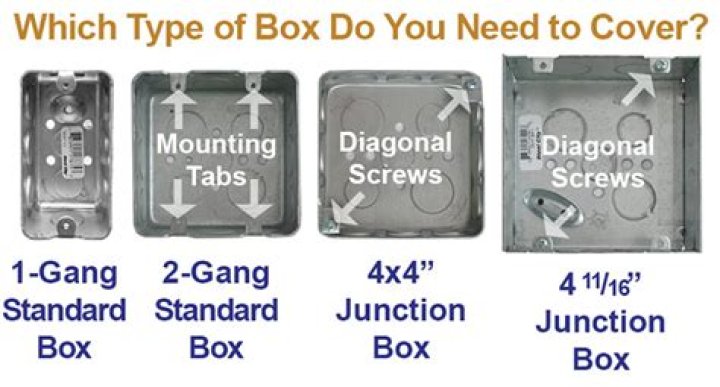

“Gang” refers to the WIDTH of your electrical box and therefore the WIDTH of the cover plate. A single gang (or 1-gang) box is only wide enough for 1 switch or outlet. A double (or 2-gang) box holds 2 devices side by side.

How many wires can be in a 2 gang box?

Double Gang Boxes: A total capacity of 34.3 cubic inches allows for 16 #14 gauge wires, 15 #12 gauge wires, or 13 #10 gauge wires. When two devices are added to the box, subtract three wires in each category.

What size is a double gang box?

Singles (1-gang) are 3.5″ wide. Doubles (2-gang) are 5.5″ wide. Triples (3-gang) are 7.5″ wide. Quadruple (4-gang) plates are 9.5″ wide.

What is a gang box for?

In electrical work, a gang box is a metal or plastic box used to securely hold electrical components. … When electrical work is installed using armored cable or metallic conduit, the conduit or cable, combined with the metal boxes, can often legally serve as a ground path.

What does double pole mean?

Double pole switches are connected to two separate electric circuits. … They essentially contain 2 switches which are linked together and can complete the circuit either simultaneously or staggered.

What does double gang mean?

‘Gang’ describes the number of switches on the plate. … A 1 gang switch will control a single lighting circuit, and with a 2 gang switch you can control two lighting circuits, and so on.

How big is a JBOX?

Junction Box The standard box used for junctions is a 4-inch square box, which offers plenty of space for making wire connections with multiple wires or cables, but other types of boxes can be also used for this application.

How deep is a double gang box?

Outlet Box; Old Work; 2 Gang; 3-7/8-Inch Length; 2-3/8-Inch Width; 3-5/8-Inch Depth; 34 Cubic-Inch Capacity; PVC Material; Blue Color; Mounting Ear, Swing Clamp Mounting; For Use With Non-Metallic Sheathed Cable; UL Approval.

What is a duplex outlet?

A duplex outlet provides space for two electrical receptacles, leaving you room to plug in two devices. … Whether you’re in search of a 30A, 125-Volt outlet for your washing machine or a 50A, 250-Volt outlet for your electric dryer, you are sure to find the right outlet for you at HomElectrical!

Article first time published on

Do grounds count in box fill?

314.16(B)(5) Equipment-Grounding Conductor Fill Equipment-grounding conductors and equipment-bonding conductors are not counted the same as other conductors. Each grounded (neutral) conductor and each ungrounded (hot) conductor, originating outside the box and terminating inside the box, counts as one conductor.

How many wires can you pigtail together?

More Than Two Cables in the Box The only appropriate way to wire a receptacle in a box with three cables is to use pigtails to connect the receptacles. ​Never connect more than one wire under a single screw terminal.

What is a 1900 box?

A 1900 Electrical Box is defined as a standard 4 inches (4”) square electrical switch box which is the combination of a gas and electrical box. It is the most commonly used box when a simple switch box is not big enough.

Why is it called gang box?

Firstly, “gang” can be used to refer to the group of tools utilized for a particular project, thus making the receptacle in which they are stored the “gang box”. Secondly, a gang can refer to a group of workmen or tradesmen, hence the name for where their materials or tools are kept is the gang’s box.

What is a two gang switch?

2 gang light switches also known as double light switches have two switches on the plate which control two lighting circuits. Within the wide range of 2g light switches there are multiple colours, finishes and profile types from top trusted brands, to ensure the perfect double light switch for any room.

What is AJ box?

An electrical junction box (also known as a “jbox”) is an enclosure housing electrical connections. Junction boxes protect the electrical connections from the weather, as well as prevent people from accidental electric shocks.

What is a 3 gang 1 way switch?

This format of light switch has three discreet switches on a single face plate. Basically this is three Single gang 1 way switches on a single face plate. The only place you would use such a beast is if you had three lights (or sets of lights) in a single room each controlled by one of the single switches.

What is a 1 gang double pole switch?

The pole of a switch refers to the amount of separate circuits that switch can control. Single pole switches can control just one circuit and a double pole switch can control two circuits. So a double pole switch is almost like having two single pole switches, controlled by the same switch.

Can I use a 2 gang switch for 1 way?

Yes, a two way switch can easily operate as a one way. A two way switch is, at least in all the cases I know of, identical to a one way switch, except that it has two sets of contacts and a common. Simply omit wiring the second contact, and, of course, omit the second switch.

What does SP and DP mean on sockets?

Commonly used as light switches in your household, all electrical switches can practically turn on and off any electronic device. … We categorise switches as single-pole (SP) or double pole (DP) switches based on their working mechanism and functionality.

How does a two pole switch work?

A double pole single throw switch controls two circuits (poles) and has 2 states an “on” (closed) state and an “off” (open) state. A double pole single throw has four terminals in total, two inputs and two outputs which are all controlled by the same switch.

What is a toggle switch?

A toggle switch is a type of electrical switch that is actuated by moving a lever back and forth to open or close an electrical circuit. There are two basic types: maintained contact and momentary toggle switches.

How wide is a 5 gang box?

RACO five-gang boxes measure 12-1/4 in. Wide by 1-5/8 in.

How wide is a 3 gang box?

This item Carlon B349ADJ Outlet Box, New Work, 3 Gang, 5-13/16-Inch Length by 3-5/8-Inch Width by 3-Inch Depth, BlueMadison Electric Products MSB3G Three Gang Device Box with Depth Adjustable, Heavy Duty 42lbItem Dimensions4.75 x 3.38 x 7.25 inches3.26 x 6.02 x 3.81 inches

What are GFCI plugs?

A ground fault circuit interrupter (GFCI) outlet is a special type of circuit breaker that can automatically shut off power directly at the outlet when it detects an electrical fault. … Damp areas can make you prone to dangerous electric shock but using a GFCI outlet can greatly reduce your risk of injury.

Why do you need a junction box?

A junction box performs several essential functions: Encloses the wiring connections and protects them from physical damage. Provides a means for mounting the electrical device and securing the electrical cable(s) serving the device. Prevents accidental contact with live wires and terminals.

What's a junction box look like?

What Does a Junction Box Look Like? It’s a standard electrical box usually found mounted to the framing of a home or building that contains the connection of two or more circuit cables or wires. Junction boxes are usually metal or plastic and can range from 2 ½” to 3 ½” deep.

How many junction boxes can you have in a house?

There are no limits on the number of junction boxes (without devices) in any particular circuit. Each piece of ‘utilization equipment’ reduces the maximum allowable load by it nameplate rating, 180va for each receptacle, and each light fixture at its maximum labeled lamp wattage.

What's the difference between a duplex outlet and a regular outlet?

Single electric outlets can work for both a 120V single outlet for small appliances, such as a power tool, or 220V outlet to connect an AC unit. A duplex outlet has two receptacles to use for power. A duplex receptacle outlet is very similar to a single outlet where it can be TR, WR, or both!

What are 4 outlets called?

The configuration whereby a pair of duplex outlets occupy the same electrical box is called a quad outlet or a quad receptacle. It allows you to keep your TV and sound system plugged in while you plug in a room light, and it still leaves a free outlet for the vacuum cleaner.

Do pigtails count in box fill?

[314.16(B)(1)] Since pigtails do not leave the box, they are not counted in box-fill calculations. Likewise, equipment-bonding jumpers are not counted because they do not leave the box. (See Figure 6.) Note that equipment-bonding jumpers are not the same as equipment-grounding conductors.
