A digital buffer (or a voltage buffer) is an electronic circuit element that is used to isolate the input from the output, providing either no voltage or a voltage that is same as the input voltage. The high input impedance is the reason a voltage buffer is used.

.

Just so, what is the use of a buffer in circuits?

A buffer is a unity gain amplifier packaged in an integrated circuit. Its function is to provide sufficient drive capability to pass signals or data bits along to a succeeding stage. Voltage buffers increase available current for low impedance inputs while retaining the voltage level.

Secondly, what is a buffer IC? order by. 14. Fundamentally, a buffer is an amplifier. It takes a small signal (lightly loading the source of the signal) and provides a copy of that signal that can drive a heavy (e.g., capacitive) load. They are used in places where connecting the heavy load directly to the source would adversely affect the signal.

In this regard, what is super buffer in VLSI?

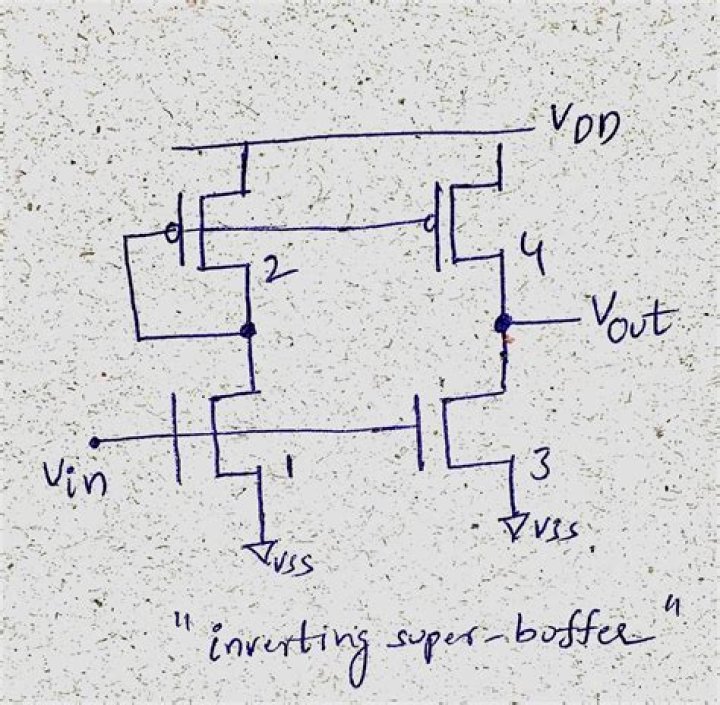

SUPER BUFFER. A super buffer has 4 internal transistors whose W/L ratios and connections gives better characteristics of charging/discharging output node cap with symmetrical rise,fall delays.

What is the difference between clock buffer and normal buffer?

Clock buffers have equal rise and fall time. This prevents duty cycle of clock signal from changing when it passes through a chain of clock buffers. Normal buffers are designed with W/L ratio such that sum of rise time and fall time is minimum. They too are designed for higher drive strength.

Related Question Answers

Why do we need a buffer?

A buffer is a solution that can resist pH change upon the addition of an acidic or basic components. It is able to neutralize small amounts of added acid or base, thus maintaining the pH of the solution relatively stable. This is important for processes and/or reactions which require specific and stable pH ranges.

What is Vcc voltage?

Vcc. An electronics designation that refers to voltage from a power supply connected to the "collector" terminal of a bipolar transistor. In an NPN bipolar (BJT) transistor, it would be +V_cc, while in a PNP transistor, it would be -V_cc. Double letters (cc) refer to power supply voltages.

Why are buffers used?

Buffer solutions are used as a means of keeping pH at a nearly constant value in a wide variety of chemical applications. In nature, there are many systems that use buffering for pH regulation. For example, the bicarbonate buffering system is used to regulate the pH of blood.

What is the use of buffering?

The Purpose of Buffering The buffer stores transmitted data temporarily as it is going between devices or between a device and an app. A buffer in a computer environment means that a set amount of data is going to be stored in order to preload the required data right before it gets used by the CPU.

What is a signal buffer?

A buffer amplifier (sometimes simply called a buffer) is one that provides electrical impedance transformation from one circuit to another, with the aim of preventing the signal source from being affected by whatever currents (or voltages, for a current buffer) that the load may be produced with.

What is current buffer?

Current buffer is an electronic circuit that is used to transfer electric current from input source having very less impedance (effective resistance) to output loads with high impedance.

What is virtual ground in op amp?

In opamps the term virtual ground means that the voltage at that particular node is almost equal to ground voltage (0V). It is not physically connected to ground. This concept is very useful in analysis of opamp circuits and it will make a lot of calculations very simple.

What is voltage follower?

A voltage follower (also called a unity-gain amplifier, a buffer amplifier, and an isolation amplifier) is a op-amp circuit which has a voltage gain of 1. This means that the op amp does not provide any amplification to the signal. Thus, for example, if 10V goes into the op amp as input, 10V comes out as output.

What is a non inverting buffer?

Non-Inverting Buffer This kind of buffer performs no inversion or decision-making possibilities. A single input digital buffer is different from an inverter. It does not invert or alter its input signal in any way. It reads an input and outputs a value.

What are three state buffers?

A tri-state buffer is a useful device that allows us to control when current passes through the device, and when it doesn't. A tri-state buffer has two inputs: a data input x and a control input c. The control input acts like a valve. When the control input is active, the output is the input.

What is a buffer in engineering?

In computer science, a data buffer (or just buffer) is a region of a physical memory storage used to temporarily store data while it is being moved from one place to another. However, a buffer may be used when moving data between processes within a computer. This is comparable to buffers in telecommunication.

What is 3rd output?

tri-state output (three-state output) An electronic output stage consisting of a logic gate, commonly an inverter or buffer, that exhibits three possible logic states, namely logic 1, logic 0, and an inactive (high-impedance or open-circuit) state.

What is JK flip flop?

JK Flip Flop. The flip flop is a basic building block of sequential logic circuits. It is a circuit that has two stable states and can store one bit of state information. The basic JK Flip Flop has J,K inputs and a clock input and outputs Q and Q (the inverse of Q).

What is a buffer in logic gates?

A buffer, is a basic logic gate that passes its input, unchanged, to its output. Its behavior is the opposite of a NOT gate. Buffers are also used to increase the propagation delay of circuits by driving the large capacitive loads.

How does a multiplexer work?

The multiplexer, shortened to “MUX” or “MPX”, is a combinational logic circuit designed to switch one of several input lines through to a single common output line by the application of a control signal. The most basic type of multiplexer device is that of a one-way rotary switch as shown.

What is bidirectional buffer?

A Transceiver can be used to provide bidirectional, input or output control, of either digital or analogue devices to a common shared data bus. Unlike the buffer, transceivers are bidirectional devices which allow data to flow through them in either direction.

What is an octal buffer?

The 74AC11244 is an octal buffer or line driver designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The device can be used as two 4-bit buffers or one 8-bit buffer, with active-low output-enable (OE) inputs.

What are basic gates?

All digital systems can be constructed by only three basic logic gates. These basic gates are called the AND gate, the OR gate, and the NOT gate. Some textbooks also include the NAND gate, the NOR gate and the EOR gate as the members of the family of basic logic gates.

Why clock buffer has equal rise and fall time?

Clock buffers are balanced. In other words, rise and fall times of clock buffers are nearly equal. The reason behind this is that if the clock buffers are not balanced, there will be duty cycle distortion in the clock tree, which can lead to pulse width violations as discussed in minimum pulse width violation example.
