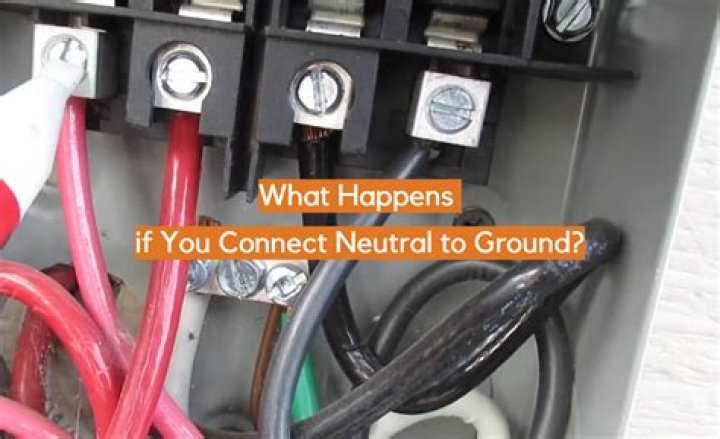

Connecting the neutral to the ground makes the ground a live wire. The neutral carries the current back to the panel. But the ground doesn’t carry a charge, not unless something has gone wrong (such as a short circuit) and it has to direct wayward electricity away from the metal case of an appliance.

Is it OK to connect neutral to ground?

No, the neutral and ground should never be wired together. This is wrong, and potentially dangerous. When you plug in something in the outlet, the neutral will be live, as it closes the circuit. If the ground is wired to the neutral, the ground of the applicance will also be live.

Can neutral and ground be connected together in main panel?

When Should Grounds & Neutrals Be Connected in a SubPanel? The answer is never. Grounds and neutrals should only be connected at the last point of disconnect. This would be at main panels only.

What happens if you touch neutral and ground?

Now, we know that neutral is always connected to the ground or earth. So when touching the neutral wire standing on the ground there is no voltage applied to our body, therefore no current flow through our body and we do not get the electric shock.

Why do we connect neutral to ground?

The neutral provides the path for electrons to move from phase through any electrical equipment. All the neutral lines are grounded so that the system (all the equipments connected) has the same electrical potential which ensures the quality and security of power distribution.

Does neutral wire carry voltage?

Voltage is carried by the live conductor, but a neutral conductor is also necessary for two important functions: Serving as a zero voltage reference point. Completing the circuit, providing a return path for the current supplied by the live conductor.

Can neutral wires shock you?

So even the current returns through neutral (only from a connected load that completes the current flow circuit) you touching the neutral with a 0V cant get you a shock. But its not safe to touch neutral wire! It is possible that the path to ground on neutral is not very good.

Do you have to separate neutral and ground in main panel?

There should always be a Separate Ground Bar in every panel. . . . Only Neutral wires should be in the Neutral Bar and only Ground wires in the Ground Bar. .

Will neutral wire carry current?

A neutral wire is used to complete the flow of electricity, it acts as a return path for the hot wire current. … During normal operations, the neutral wire will carry current. We can see neutral in most of the electrical equipment, mostly in non-linear loads.

Why does the neutral and ground have to be separated at the panel?

This answer is for the USA. The neutral wire carries current. So bonding the neutral to the ground in a subpanel will allow current to flow over the ground wire back to the main electrical panel. In some cases it could also allow current to travel on water pipes.

Article first time published on

Is neutral and ground the same?

a ground and a neutral are both wires. unless they’re tied together with other circuits, and not a ‘home run’ back to the panel, there is no difference between the two where they both end up on the same bus bar in the box.

Does neutral go back to power station?

One is the power supply (hot) conductor, used to carry primary electrical current out to the farm transformer. The second conductor, known as the power line neutral, carries the primary current back to the power supply substation.

Why neutral does not carry current?

A neutral wire is, strictly speaking, only a reference wire to measure the voltage of a live wire, but, if it is a shared wire with three or four live wire that are phased so as to add up to zero voltage , then the neutral wire will have no current.

Why do I have 50 volts on my neutral?

It’s simple. Since switches have no neutrals, you’re measuring voltage across the switch. The wire from the switch to the lamp is not a neutral, but connected to neutral via the light – a resistor, and that explains why you’re getting only 50 volts. If you remove the lamp, it will read 0 volts.

Why is there no neutral for 220?

220 doesn’t ‘need’ neutral because each pulse uses the off phase of the other side for this purpose and AC back and forth but where is the circuit since the power is only looping back to the hot bars.

What can make a neutral wire become hot?

• A neutral wire is hot because of a wrong wire, wrong readings, open neutral and low resistance.
• Until you identify the neutral wire with a multimeter, you have to consider the possibility that the neutral wire is actually the live wire.

Where do neutral wires go?

Neutral wires are usually connected at a neutral bus within panelboards or switchboards, and are “bonded” to earth ground at either the electrical service entrance, or at transformers within the system.

What is a floating neutral?

A “floating” neutral occurs when the connection to the ground breaks or becomes loose, which causes the neutral bar to “float.” This can happen in your panel or between the utility and your electric panel. It can be caused by a mechanical issue or other issues like rust or corrosion.

Can you add more neutral bar to a panel?

You CANNOT add a neutral bus. So you cannot add additional neutral bars, but they provided enough neutral slots for your needs, so you are all set. You can either add additional ground bars, or use the existing spaces as effectively as you are allowed to.

Are subpanels grounded?

The biggest difference between a subpanel and a main panel is that the ground and neutral buses on a subpanel have to be separated. Most panels come with a bar joining the two, which is easily removed. Code requires subpanels to have a ground connection that’s independent of the main panel’s.

What is a subpanel?

A subpanel is a smaller service panel that distributes power to a specific area of the home or other buildings on the property. It is essentially a satellite circuit breaker panel that has its own breakers.

What happens when you lose a neutral?

If there is no neutral, there will be an influx of voltage entering your premise, resulting in over voltage and a possible life-threatening situation. Loss of neutral results in equipment being over heated, damaged and sometimes non-fixable. Replacing valuable electronic equipment can be very expensive.

What is neutral failure?

Neutral failure is a serious condition. A break in the neutral conductor will simply result in a loss of the energy supply which leads to an Irrespective of load balance. Reasons for Neutral Failue.

What should neutral to ground read?

In most office environments, a typical reading of neutral-to-ground voltage is about 1.5V. If the reading is high (above 2V to 3V), then the branch circuit might be overloaded. Another possibility is that the neutral in the panel is overloaded.

How much voltage is between neutral and ground?

A rule-of-thumb used by many in the industry is that Neutral to ground voltage of 2V or less at the receptacle is okay, while a few volts or more indicates overloading; 5V is seen as the upper limit.

What voltage should you get between neutral and earth?

The voltage between neutral and earth it should be 1.5v.
