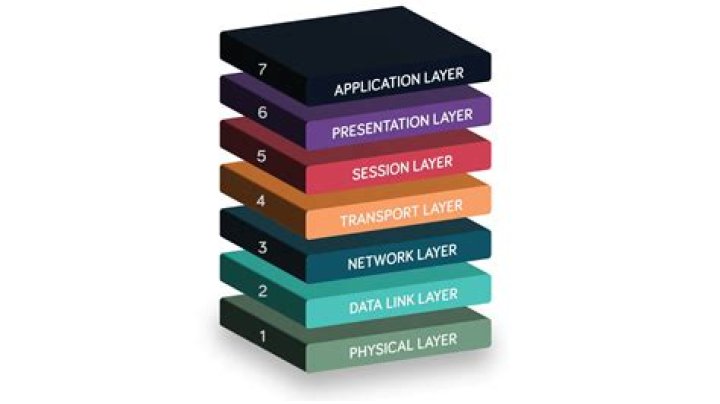

The 7 Layers of the OSI

• Layer 7 - Application.
• Layer 6 - Presentation.
• Layer 5 - Session.
• Layer 4 - Transport.
• Layer 3 - Network.
• Layer 2 - Data Link.
• Layer 1 - Physical.

.

Simply so, what is OSI model and its layer?

OSI stands for Open System Interconnection is a reference model that describes how information from a software application in one computer moves through a physical medium to the software application in another computer. OSI consists of seven layers, and each layer performs a particular network function.

Secondly, what is Layer 7 in networking? Layer 7 refers to the top layer in the 7-layer OSI model of the Internet. It is also known as the "application layer." It's the top layer of the data processing that occurs just below the surface or behind the scenes of the software applications that users interact with.

Consequently, what are the functions of OSI layers?

The Open Systems Interconnection (OSI) model defines a networking framework to implement protocols in layers, with control passed from one layer to the next. It is primarily used today as a teaching tool. It conceptually divides computer network architecture into 7 layers in a logical progression.

Who created the OSI model?

The OSI model was first defined in raw form in Washington, DC in February 1978 by Hubert Zimmermann of France and the refined standard was published by the ISO in 1984. In 1983, these two documents were merged to form a standard called The Basic Reference Model for Open Systems Interconnection.

Related Question Answers

Is OSI model used today?

Today, it is the main protocol used in all Internet operations. TCP/IP also is a layered protocol but does not use all of the OSI layers, though the layers are equivalent in operation and function (Fig. 2). The network access layer is equivalent to OSI layers 1 and 2.

What OSI layer is a router?

Routers operate on the third layer of the OSI Model, the Network-Control Layer. Rather than passing packets based on the Media Access Control (MAC) Layer addresses (as bridges do), a router examines the packet's data structure and determines whether or not to forward it.

What is OSI model and how it works?

The Open Systems Interconnection (OSI) model is a suggested standard for communication that was developed by the International Organization for Standardization (ISO). The OSI reference model describes how data is sent and received over a network. This model breaks down data transmission over a series of seven layers.

What is OSI model explain?

The Open Systems Interconnection (OSI) Model is a conceptual and logical layout that defines network communication used by systems open to interconnection and communication with other systems. The OSI Model may also be referred to as the seven-layer OSI Model or the seven-layer model.

What do you mean by layer?

In graphics software, a layer is the term used to describe the different levels at which you can place an object or image file. For the purpose of editing, working with layers allows you to go back and make changes within a layer as you work.

What do u mean by routing?

Routing is the process of selecting a path for traffic in a network or between or across multiple networks. Packet forwarding is the transit of network packets from one network interface to another. Intermediate nodes are typically network hardware devices such as routers, gateways, firewalls, or switches.

What is TCP and UDP?

They are TCP or Transmission Control Protocol and UDP or User Datagram Protocol. TCP is connection oriented – once a connection is established, data can be sent bidirectional. UDP is a simpler, connectionless Internet protocol. Multiple messages are sent as packets in chunks using UDP.

Why do we need the OSI model?

The OSI model is important because many certification tests use it to determine your understanding of computer networking concepts. The OSI Reference Model is an attempt to create a set of computer networking standards by the International Standards Organization. A "Reference Model" is a set of text book definitions.

What is OSI layer with example?

Top layer of OSI model is application layer. It provides the protocols and services that are required by the network-aware applications to connect with the network. FTP, TFTP, POP3, SMTP and HTTP are the few examples of standards and protocols used in this layer.

What is MAC layer in OSI model?

The Media Access Control Layer is one of two sublayers that make up the Data Link Layer of the OSI model. The MAC layer is responsible for moving data packets to and from one Network Interface Card (NIC) to another across a shared channel.

What are the 7 layers of OSI Reference Model and their purpose?

The OSI Model Defined In the OSI reference model, the communications between a computing system are split into seven different abstraction layers: Physical, Data Link, Network, Transport, Session, Presentation, and Application.

What is protocol explain?

A protocol is a set of rules and guidelines for communicating data. Rules are defined for each step and process during communication between two or more computers. Networks have to follow these rules to successfully transmit data.

What is Layer 2 in networking?

Layer 2, also known as the Data Link Layer, is the second level in the seven-layer OSI reference model for network protocol design. Layer2 is the network layer used to transfer data between adjacent network nodes in a wide area network or between nodes on the same local area network.

How do you remember the 7 layers of the OSI model?

You need to know the seven layers in sequence, either top-to-bottom or bottom-to-top. Here are some mnemonic phrases to help you remember the layers of the OSI model: “Please Do Not Throw Salami Pizza Away” — this works for bottom-to-top. If you don't like salami pizza, then how about seafood or spinach pizza instead?

Which layer is port layer in OSI model?

The Ports are defined in the 5th layer of the OSI model which establishes and controls the dialogue between the source and destination. if you are using the OSI model, "Port" is a layer 5 definition, otherwise if you are using the TCP/IP model it will be considered as a layer 4 entity.

Where is TCP IP used?

TCP/IP, or the Transmission Control Protocol/Internet Protocol, is a suite of communication protocols used to interconnect network devices on the internet. TCP/IP can also be used as a communications protocol in a private network (an intranet or an extranet).

What is a Layer 7 firewall?

Layer 7, the application layer of the OSI (Open System Interconnection) Model, supports application and end-user processes, such as HTTP and SMTP. Many application-layer firewalls allow you to create filters to intercept, analyze or modify traffic specific to your network.

What is a layer 7 proxy?

A layer 7 load-balancer takes routing decision based on IPs, TCP or UDP ports or any information it can get from the application protocol (mainly HTTP). The layer 7 load-balancer acts as a proxy, which means it maintains two TCP connections: one with the client and one with the server.

What layer of the OSI model is IP?

OSI uses two separate layers (physical and data link) to define the functionality of the bottom layers while TCP/IP uses one layer (link). OSI uses the network layer to define the routing standards and protocols, while TCP/IP uses the Internet layer.
