Is 80 cfm enough for bathroom?

For medium-sized bathrooms, use 80 to 99 CFM bath fans. For large bathrooms that are over 100 square feet but under 150 square feet, use over 100 CFM bath fans. For extra-large bathrooms, add 50 CFM for every toilet, 50 CFM for every bathtub or shower and 100 CFM for a jetted bathtub.

What is a good cfm for a bathroom fan?

The rule of thumb is that you need at least 1 CFM per square foot of room area. To determine the square footage of your bathroom, multiply the length times the width. For example, if your bathroom is 6 feet wide and 9 feet long, its square footage is 54. Therefore, it should have a fan rated for at least 54 ​CFM.

How many CFM do I need for a 8×10 bathroom?

So an 8′ x 10′ bathroom, 80 square feet, would have a minimum airflow requirement of 80 cfm. For bathrooms over 100 square feet, the calculations are based not on square footage, but on the number and type of fixtures in the bathroom. An allowance of 50 cfm should be made for each standard toilet, bathtub and shower.

What is code for venting a bathroom fan?

Bathrooms. Section 1203.4. 2.1 of California’s building code requires all bathrooms with a bathtub, shower, spa or similar fixtures to be ventilated by an exhaust fan. The fan must be Energy Star-compliant and vented to the outside.

What CFM rating should you recommend to a customer with a 90 square foot bathroom?

Air movement is typically measured in cubic feet per minute (CFM). Ventilation rates based upon eight air changes per hour are generally suggested. For most bathrooms this works out to one CFM per square foot of bathroom area.

Can a bathroom fan be too powerful?

Don’t choose a fan that’s too powerful, or you’ll risk pulling all the air-conditioned or heated air out of the house. Check that the bathroom door has at least a 3⁄4-in. clearance above the finished floor to allow proper entry of makeup air, as recommended by the Home Ventilating Institute (HVI).

Is my bathroom fan strong enough?

We recommend at least an 80 CFM for most bathrooms but a 100/110 for a larger master bathroom. This will help move the moisture out of the bathroom and reduce the risk of mold.

Is it OK to vent a bathroom fan through the soffit?

Venting bathroom fans is usually done through a side wall or roof, but it is also OK to vent a bathroom fan into a soffit. For those that do not know, a soffit is an architectural feature that can be interior or exterior. Soffits are usually horizontal and are found at the eaves of your roof.

Is it OK to vent a bathroom exhaust fan into the attic?

No, you cannot vent your bathroom exhaust fan into the attic. You should never exhaust the bathroom fan directly into the attic. It is almost always required by code that the exhaust fans vent on the outside of the home with no air leaks into the interior of the home.

How many CFM do I need for my bathroom?

For most bathrooms this works out to one CFM per square foot of bathroom area. For example, a 7′ x 10′ bathroom would require a 70 CFM fan. A 50 CFM rating is recommended as a minimum for bathrooms 50 sq. ft.

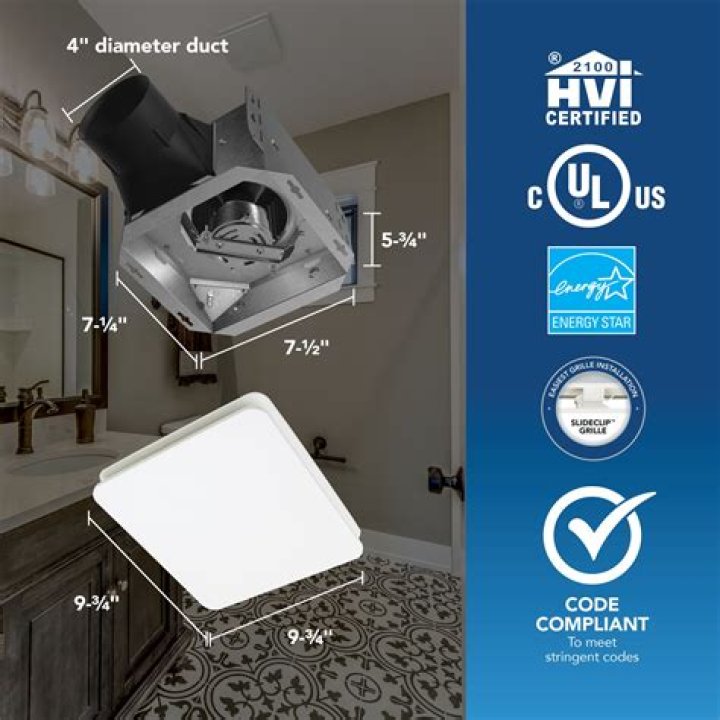

What is 2100 HVI certified?

The mark consists of the literal portion “HVI” stacked on top of the literal portion “CERTIFIED” all appearing under a triangle and square to represent a roof and a chimney rendering the composite whole of the mark configured like the front view of a house. Within the roof of the house, the number “2100” appears.

Why are bathroom fans so weak?

The Dampers Are Stuck There are two dampers for a bath fan, one at the housing and another where the duct exits the building. If they don’t open easily or open only partly, airflow will be weak. Try moving the exterior damper by hand to make sure it opens easily. Clean away any debris that might hinder movement.

What is the Sone rating for the Ventline 100 cfm Bath fan?

Q: what is the sone rating for the Ventline 100 CFM bath exhaust fan? A: The Sones is 6.082. A: Yes. Q: I recently purchased a Ventline 100 CFM Bathroom Ceiling Exhaust Fan and am struggling to figure out how to secure the plastic cover with the two v-shaped wires provided.

Does Ventline 90 remove moist shower air from bathroom fan?

We purchased the upgraded bathroom fan/light with a lot more RPMs that the original fan that was originally installed in our MB. The “fan” had lost it’s oomph and did not suck Out the moist shower air. But the new Ventline 90 certainly removes it with definitely no problem.

Where do the V-shaped connectors go on a Ventline 100 cfm fan?

Q: I recently purchased a Ventline 100 CFM Bathroom Ceiling Exhaust Fan and am struggling to figure out how to secure the plastic cover with the two v-shaped wires provided. Could you please offer a suggestion? A: The V-Shaped connectors go in the long slots around the edge of the fan.

What is the CFM of the Air King high performance fan?

90 CFM at 3.0 Sones to Reduce Moisture in Medium Bathrooms Curbside pickup available. The Air King High Performance Exhaust Fan features a unique snap-in installation system. The included bracket nails or screws to the ceiling joist allowing easy installation.
