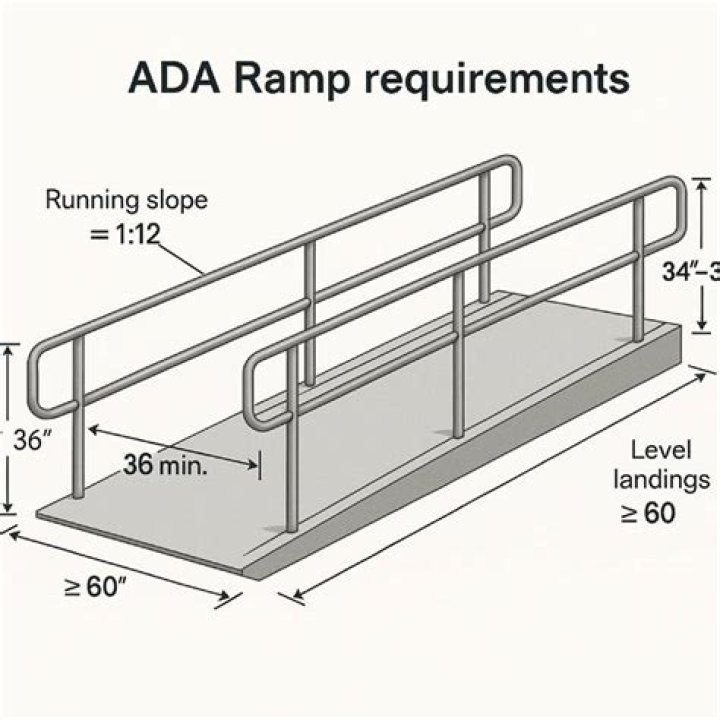

Ramps must be a minimum of 36 inches wide. Some areas require wider ramps. All edges must be protected to keep anyone from slipping off. All ramps shall have top and bottom landings as wide as the ramp itself and at least 60 inches long.

What is code for building a wheelchair ramp?

ADA Ramp Slope Requirements of a 1:12 handicap ramp slope ratio which works out to be one foot of ramp for each inch of rise. For instance, handicap ramp specifications require a 20 foot ADA ramp for a 20 inch rise. ADA Specifications require a Minimum 5′ x 5′ Flat area at the top and bottom of the ADA ramp.

How much slope does a wheelchair ramp need?

What is the maximum gradient for a wheelchair ramp? The ramp must have a 1:12 slope ratio. This means that there must be a one-inch rise in the ramp for every corresponding 12 inches of the ramp.

Do residential ramps need to be ADA compliant?

Residential ramp applications are not required to follow the ADA commercial code, but it is suggested that residential ramps adhere to a standard with a slope up to (but not more than) a 2:12 ratio, or one foot of ramp for every 2 inches of vertical rise.

Can I use plywood for a wheelchair ramp?

Q. Can I use plywood for a wheelchair ramp? For an indoor ramp, plywood might work, but when building a wheelchair ramp outdoors, use pressure-treated lumber.

How long does a ramp need to be for 4 steps?

For commercial occupied use, the Americans with Disabilities Act (ADA) recommends a 1:12 slope. This means that every 1” of the vertical rise needs at least 1′ (12”) of ramp length.

How long does a ramp need to be for 3 steps?

Here are some factors that should be considered: Stairs typically run about 7.5 inches high each so for three stairs a standard rise or height would be about 22 inches. The ADA [Americans with Disabilities Act] recommends 1 foot for ramp for every one inch of rise.

How do you calculate ramp length?

How long of a ramp should I buy? Determining Ramp Length: Measure total rise (how many inches from lower level to upper level) and divide by the slope.

How wide are wheelchairs?

Most wheelchairs measure 24 to 27 inches wide from wheel to wheel.

What size ramp do I need?

The Americans with Disabilities Act (ADA) requires a 1:12 slope ratio for commercial ramps (ramps used in public spaces). This means that for every 1 inch of rise, 12 inches of ramp are required. For example, if an entryway is 36 inches high, you will need a ramp that is at least 36 feet long.

Article first time published on

How steep can a ramp be?

The maximum recommended slope of ramps is 1:20. Steeper slopes may be allowed in special cases depending on the length to be covered (fig. 4). Ramps should be provided with landings for resting, maneuvering and avoiding excessive speed.

How thick should Plywood be for a ramp?

My recommendation for surfacing an outdoor ramp is to use two layers of 3/8″ untreated plywood, paint the top layer of plywood with polyurethan paint (maybe the underneath side as well), then use a layer of 1/4″ massonite for the top surface (smooth side up), painted with spar urethane, and a giant tarp to cover when …

How much does a wooden wheelchair ramp cost?

MaterialPer Linear FootConcrete$200 – $250Wood$100 – $250AluminumAbout $150Steel/Metal$200 – $250

How do you calculate wheelchair ramp length?

For commercial use when somebody is sitting in the wheelchair or scooter while it climbs the ramp, ADA recommends a 1:12 slope, which means that every 1″ of vertical rise requires at least 1′ (12″) of ramp length (5 degrees of incline). Example: A 24″ rise requires a minimum ramp length of 24′ (288″) (24 divided by 1).

Do wheelchair ramps need handrails?

Ramps must have handrails on both sides if their rise is greater than 6 inches or their length is greater than 72 inches. Cross slopes (areas where a ramp slopes sideways, perpendicular to the ramp’s length) must be less than 1:50, and surfaces must be slip-resistant and stable.

How do I build a ramp for free?

The “Habitat for Safe Seniors Free Ramp” Program falls under the “Home Safety and Repair” Program which provides: Free home repair assistance for seniors such as adding a step, fixing a handrail, stabilizing loose banisters, and replacing rotted landings, plumbing repairs and more.

How wide is an extra wide wheelchair?

Weight Capacity500 lbs.Seat Depth18″Seat-to-Floor Height20″Overall Width28.5″ – 32.5″Overall Length32″

What is the slope for a wheelchair ramp must not exceed 1 12?

Maximum slope for hand-propelled wheelchair ramps should be 1″ of rise to every 12″ of length (4.8 degree angle; 8.3% grade). Maximum slope for power chairs should be 1.5″ rise to 12″ length (7.1 degree angle; 12.5% grade).

How do you calculate ramp ratio?

Divide the length of the wheelchair ramp by the height. This will be the second number in your ratio. The first number is always one. If the ramp measures 12 feet long and the rise is 2 feet, you would divide 12 by 2 to get 6, and your ratio would be 1 to 6.

How long should a wheelchair ramp be for 5 steps?

A 5 inch rise requires a 5 foot ramp, a 12 inch rise requires a 12 foot ramp and so on. The ADA recommends this slope for long home ramps as well as commercial ramps. Note: This 1:12 slope works for most strong, unassisted manual wheelchair users, although PVI always recommends assistance.

How do you push a wheelchair up and down a ramp?

1. Put the anti-tippers down when ascending a wheel chair ramp. …
2. Lean uphill into the slope of the ramp. …
3. Stay in constant contact with the person in the wheelchair. …
4. When pushing someone down a ramp, lean backward with the slope of the ramp. …
5. Zigzag down the ramp if the decline is too steep.
