How does panic hardware work

How it Works. Panic bars consist of a flat, horizontal bar attached to the inside of an outward-opening door. This flat bar retracts a latch mechanism when pushed, unlocking the door for fast exit. Doors using a classic crash bar require no knowledge or keys to operate and are ADA-compliant for handicapped usage.

How does a panic bar work?

What is the purpose of panic hardware?

Panic hardware, also known as an exit device (or fire exit hardware when used on fire doors), is designed to provide fast and easy egress to allow building occupants to exit safely in an emergency.

Can panic hardware go on any door?

Panic hardware can be used with single doors or pairs of doors. They are used in combination with free egress, delayed egress, and controlled egress or controlled access doors.

Why is it called a panic bar?

The names panic bar and crash bar were coined to indicate the way people when panicked in a mass evacuation due to emergency crashed into the doors in order to exit. In any building area or room where many people may be gathered, code requirements dictate that safe and easy egress must always be possible.

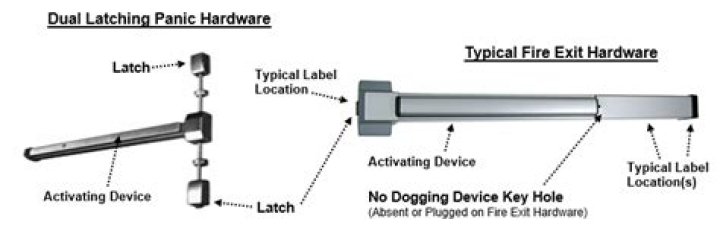

What is the difference between panic hardware and fire exit hardware?

Panic Hardware is an exit device which is tested for use on a door that is required to have panic hardware, but cannot be used on a fire door. … Since fire doors require positive-latching, fire exit hardware does not incorporate mechanical dogging.

What are push door handles called?

A crash bar (also known as a panic exit device, panic bar, or push bar) is a type of door opening mechanism which allows users to open a door by pushing a bar.

Is panic hardware requirements on electrical rooms?

In the 2020 NEC update, either option – panic hardware or fire exit hardware – is allowed for personnel doors in electrical spaces. Just be sure to meet any applicable life safety or IBC requirements in your area.

Do mechanical rooms require panic hardware?

Panic hardware or fire exit hardware may also be required for mechanical rooms such as boiler rooms, incinerator rooms, furnace rooms, and refrigeration machinery rooms. The IBC also requires panic hardware on some electrical rooms.

Do all egress doors need panic hardware?

The IBC 2006 and 2009 editions – requires Panic Hardware and/or Fire Exit Hardware on egress doors with an occupant load of 50 people or more in the following occupancies: … All High Hazard occupancies (regardless of occupant load)

Article first time published on

Where is exit hardware required?

Where panic hardware is required, the actuating portion of the device (touchpad or crossbar) must be at least half the width of the door leaf. Current codes require panic hardware to be mounted between 34 inches and 48 inches above the floor.

Do stair doors need panic hardware?

According to all editions of the IBC starting with the 2006 edition, panic hardware is required for doors serving 3 use groups: Assembly occupancies with an occupant load of 50 people or more* Educational occupancies with an occupant load of 50 people or more. High Hazard occupancies with any occupant load.

Where are panic bars required?

The required locations for panic hardware vary depending on which code has been adopted, but typically, panic hardware is required for assembly, educational/daycare, and high hazard occupancies, where the calculated occupant load is 50 people or more (International Building Code (IBC) and International Fire Code (IFC …

How do you teach a dog to go down a panic bar?

The most common way to “dog down” or place the exit device in the unlocked mode is by pushing the bar, inserting and turning a “dogging key” into a hole on the interior bar of the exit device. The dogging key is commonly a hexagonal or “hex” key like the picture.

Who invented push doors?

Historians believe the first automatic doors were invented by a Greek mathematician and engineer, Heron of Alexandria who was born in around 10 AD. He wrote two books known as the Pneumatica to describe his theories and experiments.

What is exit device?

An exit device (also referred to as a panic device, panic hardware, panic bolt and crash bar) is hardware that is installed on a door that keeps it locked from the outside, while allowing people on the inside to exit without unlocking it.

What is a panic bolt?

The Lockwood range of of Panic (Skeleton) Bolts are to be used where a high degree of strength and durability is required. They are generally used on the inactive leaf of double doors where a more robust, stronger bolt is required rather than a traditional barrel bolt and there is no need for primary egress.

Why are round door knobs illegal in the US?

As University of British Columbia professor Tim Stainton explained in the article, the doorknob ban is in the spirit of a concept known as universal design, which holds that environments should be built to be usable by a majority of people regardless of age or capacity, rather than adapted to meet the needs of the …

How do lever door handles work?

How do door levers work? When the handle is turned, a square shaped spindle (a thin metal rod) inside turns. This rotates a cylinder, which is connected to the latch bolt that keeps the door closed. As it turns, the latch bolt is withdrawn into the door, allowing it to open.

Why are door knobs made of brass?

Brass is durable and resistant to corrosion, making it an attractive option from early on in the door-knob-making process, when knobs were first created by brazing two pieces of metal together and then through casting beginning around 1846.

Is panic hardware considered a latch?

Panic hardware is defined by the International Building Code (IBC) as: “A door-latching assembly incorporating a device that releases the latch upon the application of a force in the direction of egress travel.” Fire exit hardware is panic hardware that is listed for use as part of a fire door assembly.

What is egress hardware?

Delayed egress hardware prevents a door from being opened from the egress side, usually for a period of 15 seconds. This type of device is often used to prevent theft, while maintaining life safety.

How many access entrances are required to working space about electrical equipment rated 1200 amperes or more and over 6 feet wide?

EXHIBIT 110.18 At least one entrance is required to provide access to the working space around electrical equipment. EXHIBIT 110.19 For equipment rated 1200 amperes or more and over 6 feet wide, one entrance not less than 24 inches wide and 61⁄2 feet high is required at each end.

Does a fire exit have to have a push bar?

Fire exits doors should open easily and, wherever possible, in the direction of traffic flow. If it is a security door that is usually kept locked but will be used by members of the public in an emergency situation, it will have to be fitted with a panic or push bar.

What is ul305?

UL 305 was developed specifically as a test method focused on the evaluation of panic hardware to be used in emergency exits. Underwriters Laboratories (UL) published the first edition of the standard in 1955 and it has been in continuous use through today’s Sixth Edition.

Does an electrical room need two exits?

Two exit access doorways are required in boiler, incinerator and furnace rooms where the area is over 500 square feet (46 m2) and any fuel- fired equipment exceeds 400,000 British thermal units (Btu) (422 000 KJ) input capacity.

Are electrical room doors required to swing out?

The door must be at least 24 inches wide and 78 inches high, and must be outswinging and equipped with panic bars, pressure plates, or other devices that are normally latched but open under simple pressure. Refer to the NEC for an exception that would allow one door instead of two if certain criteria are met.

What is considered as large equipment in the NEC?

Large equipment was equipment rated 1,200 amperes (A) or more and over 6 feet wide. The new requirement called for two entrances, one at either end of the equipment. It also specified the minimum dimensions of the entrance.

What is an assembly occupancy?

An assembly occupancy is generally defined as “an occupancy (1) used for a gathering of 50 or more persons for deliberation, worship, entertainment, eating, drinking, amusement, awaiting transportation, or similar uses; or (2) used as a special amusement building, regardless of occupant load.” Assembly occupancies …

What is a panic handle?

Panic hardware, also known as an exit device, panic bar, crash bar, touch bar or push bar, is designed to provide building occupants fast and easy egress in an emergency. Exit Devices unlock doors opening to the outside during emergency conditions.
