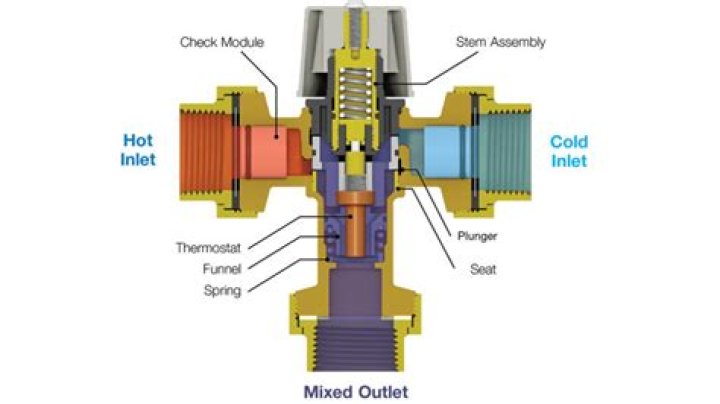

The mechanism of Thermostatic Mixing Valves is a basic wax thermostatic principle which limits the quantity of hot water and cold water by blending. Also, if the temperature rises above the requirement point then the mixing valves automatically shuts down thus preventing extra hot water to flow through the pipe.

How do mixer valves work?

The mechanism of Thermostatic Mixing Valves is a basic wax thermostatic principle which limits the quantity of hot water and cold water by blending. Also, if the temperature rises above the requirement point then the mixing valves automatically shuts down thus preventing extra hot water to flow through the pipe.

What causes a mixing valve to fail?

Inconsistent Hot Water Older model hot water mixing valves age over time and can break down with usage. As a result they can begin to fail in correctly controlling water temperature.

How do you adjust a mixing valve?

To adjust the temperature supply remove the plastic cap on top of the valve and adjust with a close fitting spanner. To increase the temperature turn anti-clockwise To decrease the temperature turn clockwise To set the valve to a maximum recommended mixed water temperature, see table below.

How do you tell if a mixing valve is bad?

1. Your water temperature isn’t right. If a TMV valve stops working correctly, then you may notice that your hot water suddenly starts to run hotter than it should. …
2. Your water doesn’t flow normally. …
3. You have leaks or drips.

How does a 3 way mixing valve work?

Three-port mixing valves. The valve takes hot water from the boiler and mixes it with the cooler return water to provide a circulation of mixed water of sufficiently high temperature to meet the heating demand. The system operates with a constant flow rate and variable temperature.

Do mixing valves have check valves?

– Thermostatic mixing valves must have integrated check-valves. – Thermostatic mixing valves must allow easy cleaning and disinfection operation.

Can you install a mixing valve upside down?

In any position, the thermostatic mixing valve can be installed. Either upside down or sideways.

Which way do you turn a mixing valve?

Turning the Watts mixing valve counterclockwise makes the outgoing water temperature hotter. Hot water enters the valve’s right side, cold water enters the mixing valve’s bottom, and mixed or tempered hot water leaves the valve at its left side.

What temperature should a mixing valve be set at?

These valves should never be set to exceed a maximum temperature of 49C (120F). (Watts recommends the maximum temperature of 43C (110F) for shower and bathing fixtures.)

Article first time published on

How long should a mixing valve last?

Your brass mixing valve should last a very, very long time-lifetime (if not damaged). Hard water is more likely to affect cartridge (if you have one) and wears it out earlier than in areas where water is not so hard. I just had to replace my cartridge after only 5 years.

Can a bad mixing valve cause low water pressure?

Low pressure in a shower can be caused by several issues such as a clogged showerhead, a worn-out mixing valve, closed valve, leaking pipe, or even a faulty water heater.

Should I replace my mixing valve?

If there are drips, that’s a good indication that you should think about replacing the valve. Because, not only are you wasting water, but water that leaks behind the wall can cause rot as well as mold and mildew growth.

How do I adjust my mixing valve wattage?

To adjust the setting of the valve, loosen locking cap screw with hex wrench, see Figure 2. Cap must be lifted 1/4” to adjust temper- ature. To increase the tem- perature, turn counterclockwise. To decrease temperature turn clockwise.

What is the difference between a mixing valve and a thermostatic mixing valve?

A tempering valve is accurate to around 3℃ +/-, while a thermostatic mixing valve can keep the water to 1℃ +/- and responds faster than a tempering valve to changes in incoming water temperature. … TMV’s are designed specifically for use in facilities used by high-risk persons such as: aged care centres.

What is the difference between 2-way and 3-way valves?

The Differences Between 3-Way Valves and 2-Way Valves A 2-way valve is a straightforward device with two openings, one for inlet and the other for outlet. … A 3-way valve, as the name implies, has three openings. When functioning as a two-inlet, single-outlet system, these valves can be used for mixing fluids.

How does a three way control valve reduce the flow through the coil?

A three-way control valve reduces the flow through the coil by: Allowing some of the flow to bypass the coil. A two-way control valve reduces the flow through the coil by: Closing and reducing the flow through the circuit.

What does a mixing valve do on a water heater?

A Honeywell mixing valve allows you to set your water heater to a higher temperature to reduce the threat of bacteria growth, yet the mixing action helps prevent scalding. Plus, you’ll increase your available hot water supply by mixing hot water with cold.

Does a tankless water heater need a mixing valve?

Tankless water heaters do not require a mixing valve, as long as the controller cannot be adjust higher than 120F.

What happens if shower valve is installed upside down?

Installing it upside down with a diverter spout would mean the shower always flowed water even if the diverter was not operated. Reversing the cartridge just interchanges the hot and cold sides. You have to rotate the valve body to reorient the diverter/shower head functions.

What is Valve for shower?

What is a shower valve? These valves are fittings designed to control water flow and temperature in the shower. Up-to-date shower valves, when properly installed, can make showering more pleasant by reducing temperature fluctuations and surprise changes in water pressure.

Is a mixing valve necessary?

Thermostatic mixing valves on your water heater are essential to prevent scalding and control water temperature at the delivery point. It allows you to increase the heater temperature, killing off harmful bacteria.

What is the minimum acceptable hot water temperature?

The EPA recommends 120 degrees because it’s hot enough to keep diseases at bay, it’s not hot enough to cause scalding, it will supply enough hot water for most small families and is relatively energy-efficient.

What is the difference between thermostatic and pressure balance?

Temperature Control A pressure-balanced valve uses a shuttle piston to balance the hot and cold water pressure, even when one line has a sudden loss in pressure. A thermostatic valve actually measures the temperature of the incoming hot and cold water, and adjusts the amounts of each to maintain a constant temperature.

How does a temper valve work?

How Does A Tempering Valve Work? This valve works by mixing both hot and cold water together It produces the safest water temperature. … Tempering valves work by allowing the 60 c water inside the unit to be mixed with cold water and then safely flow out of the faucet with a temperature of 45 c to 50 c.

Why do we mix valves?

The thermostatic mixing valve neutralizes both threats by allowing the water heater to be set to a high enough temperature to reduce the threat of bacteria growth, yet the mixing action maintains the appropriate outlet water temperatures to the fixtures and allows occupants to use the sinks, showers or tub with less …

Why is my shower mixer not mixing?

The usual suspects for this problem are a blocked shower head, kinked or damaged shower hose, or blocked inlet filters in the shower itself. It could also be due to faulty non-return valves. Permanently running either hot or cold.

Why do shower valves go bad?

If the cartridge wears out, your shower valve won’t function properly. (Indicated by leaking or seeping water.) The rubber rings and parts around the shower valve may need to be replaced, as these shower components are susceptible to breaking, corrosion, or dry-rot.

How long should a shower thermostat last?

On average, the flow cartridge lasts 2 years.

How long should a shower mixing valve last?

A properly installed shower valve should serve you well for a long time. Even if you live in an area with hard water that causes limescale build-up in your appliances, you can expect to have a shower valve work well for about four or five years.

Why does my water pressure drop when I flush the toilet?

When the toilet flushes, cold water is diverted to refill the tank, which causes a pressure drop in the cold water line. … And then when the valve does adjust, it does so by reducing the pressure coming from the hot water line, resulting in an overall drop in pressure.
