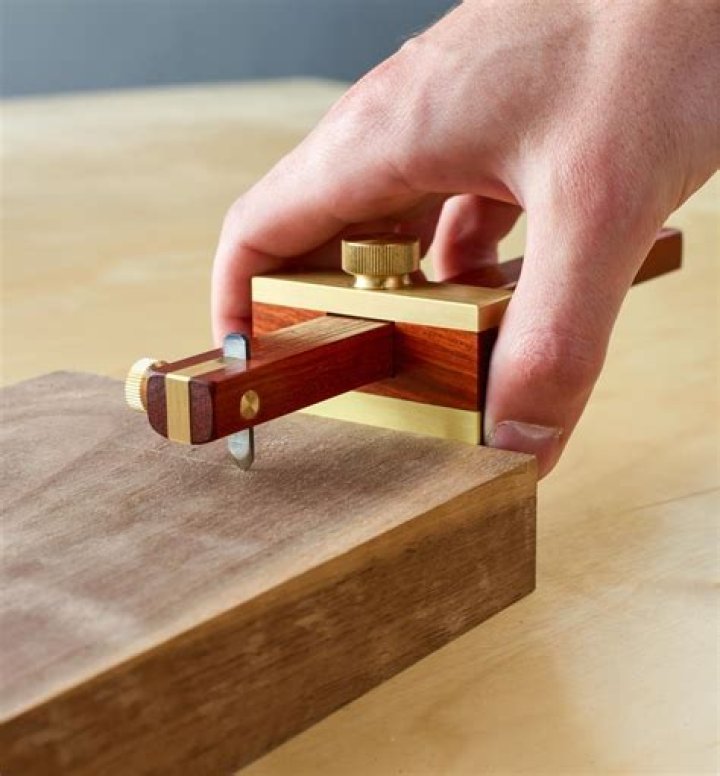

A marking gauge, also known as a scratch gauge, is used in woodworking and metalworking to mark out lines for cutting or other operations. The purpose of the gauge is to scribe a line parallel to a reference edge or surface. It is used in joinery and sheetmetal operations..
Then, what is the difference between marking gauge and marking knife?
A mortise gauge has 2 pins to scribe both sides of a mortise simultaneously. A cutting gauge is a marking gauge with a knife instead of a pin. Basically, the theory behind this distinction is that cutting across grain with a knife is better than using a pin.
Similarly, what are the parts of a marking gauge? The basic marking gauge consists of four parts: an 8– to 12"–long beam, a fence, a fence-locking device, and a marking pin, as shown below.
what is a mortise gauge tool used for?
A mortise gauge is a woodworking tool used by a carpenter or joiner to scribe mortise and tenon joints on wood prior to cutting. Mortise gauges are commonly made of hardwood with brass fittings.
What is a sliding bevel used for?
A sliding bevel or a sliding T bevel is a gauge that is completely adjustable typically used to transfer angles. This measuring tool has a handle, usually made of wood and a metal blade with a wing nut or thumbscrew. The points at which the blade and the handle meet can be locked at any angle by tightening the screw.
Related Question Answers
Why is it called a jack plane?
The name Jack comes from the saying “jack of all trades” as the versatility of jack planes allows them to perform some of the work of scrub, smoothing, and jointer planes, especially on smaller pieces of work. The Jack plane can be used as a three different type of plane just by changing the blade set up.What is a marking knife used for?
A marking knife (striking knife) is a woodworking layout tool. It is used to scribe a line to be followed by a hand saw or chisel when making woodworking joints and other operations.What are the marking tools?
Marking tools - Tracing wheel and dressmaker's paper: Dressmaker's paper is something like carbon paper, in that it transfers markings with applied pressure.
- Water soluble pencils: These look like colored pencils, and come in a range of colors which are suitable for different fabrics.
- Markers and pens:
- Tailor's chalk:
- Chalk pen:
- Pins:
What is marking operation?
1. Purpose of marking and punch marking. Marking means laying off the shape and size of a workpiece from data in the manufacturing drawing onto the blank. Marking and punch marking are necessary preparatory operations for subsequent working operations, such as cutting, forming and joining in single-piece production.What is cutting gauge?
A cutting gauge has the same structure as a marking gauge, but uses a knife instead of a pin to mark the wood. This allows it to mark the wood against the grain keeping the same level of accuracy as going with the grain. A cutting gauge can also be used to cut thin pieces of veneer, which is a thin type of vinyl.What is marking block?
The Marking block is a Moodle block add-on that provides a summary of activities awaiting grading. It includes a separate page that provides an alternate gradebook functionality tied to the marking block. This block is restricted to teachers and administrators.What are the types of gauges used in carpentry?
There are three basic types of gauge: marking gauge mortise gauge cutting gauge. A marking gauge is used for marking lines parallel to the face edge and side on wood. It consists of a stock that slides up and down the stem, allowing various measurements to be set.How does a bevel gauge work?
A sliding T bevel, also known as a bevel gauge or false square is an adjustable gauge for setting and transferring angles. The bevel can be used to duplicate an existing angle, or set to a desired angle by using it with any number of other measuring tools (such as a protractor, or framing square).What is a mortising chisel?
A mortiser or morticer is a specialized woodworking machine used to cut square or rectangular holes in a piece of lumber (timber), such as a mortise in a mortise and tenon joint.How do you use a bevel?
Lay the T bevel against the surface of the angle cut to be copied. Rotate the inside edge of the blade to the existing angle until it matches the angle being transferred. Tighten the wing nut until it locks the blade and handle in position. Place the T bevel on the working surface and transfer the angle.
